Product Description:

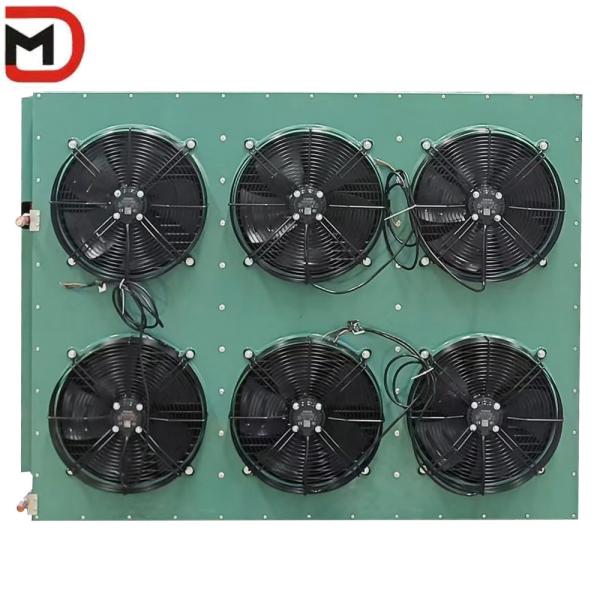

The Air-Cooled condenser is an essential component that is used to
cool down cooling equipment. There exist three different types of
condensers for customers to choose from. These include H, V, and U
types. H type is designed to accept side-blowing, whereas V and U
types support roof-blowing.
One of the most important features of the Air-Cooled condenser is
its reasonable structure and good interchangeability. This means
that it can easily work with different compressors and offer
versatile solutions depending on the needs of customers.
The design of this condenser also allows it to meet the needs of
different customers. The window fin is one such design choice that
is available. This means that users can choose the fin that best
suits their specific needs.
Technical Parameters:
Model Details
| Model | Area | Row bend several Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) | Intake pipe Ømm | The liquid pipe Ømm | Weight kg |
|---|
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3×7 | 1 | 90 | 1250 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4×7 | 1 | 90 | 1250 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4×8 | 1 | 164 | 1800 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4×9 | 1 | 164 | 1800 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4×10 | 1 | 216 | 3000 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5×10 | 1 | 216 | 3000 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4×8 | 2 | 2×164 | 2×1800 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4×8 | 2 | 2×164 | 2×1800 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4×9 | 2 | 2×216 | 2×3000 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4×12 | 2 | 2×216 | 2×3000 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4×14 | 2 | 2×216 | 2×3000 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4×14 | 2 | 2×216 | 2×3000 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4×18 | 4 | 4×164 | 4×1800 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4×20 | 4 | 4×216 | 4×1800 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4×20 | 4 | 4x216 | 4×3000 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4×3000 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4×24 | 4 | 4x216 | 4×3000 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5×24 | 4 | 4x290 | 4×4500 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5×24 | 4 | 4x290 | 4×4500 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6×24 | 4 | 4x449 | 4x6500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4×8500 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4×8500 | 380 | 32 | 25 | 260 |
Applications:
With a minimum order quantity of,making it affordable for
businesses of all sizes. The packaging details include a wooden
case for added protection during transit. The delivery time is only
15 working days, ensuring that you get your product on time. The
payment terms are flexible, with T/T being the accepted mode of
payment. With a supply ability of 1000000pcs/year, you can be
assured that your requirements will be met with ease.
The DM-FNN Air-Cooled Fnh Refrigeration Condenser is ideal for
blast freezer applications. With its direct drive motor type and
air cooling method, it offers efficient cooling and is easy to
maintain. The voltage required is either 380V or 220V, making it
compatible with most power sources. This product is an air
condenser cooler, making it the perfect choice for those who want
to avoid the hassle of water supply and drainage.
Whether you require a Steam Condenser or an Air Cooled Fnh
Refrigeration Condenser for Cold Storage, Damai's DM-FNN Air-Cooled
Fnh Refrigeration Condenser is the perfect choice. Its efficient
cooling and easy maintenance make it a popular choice for
businesses of all sizes. So why wait? Get in touch with us today to
place your order!
Packing and Shipping:
Product Packaging:
Shipping:
- Ships within 24 hours of purchase
- Estimated delivery time: 15-20 business days
- International shipping available with additional fees
FAQ:
Q: What is the model number of the air cooler condenser?
A: The model number is DM-FNN.
Q: Where is the air cooler condenser manufactured?
A: The air cooler condenser is manufactured in China.
Q: What is the minimum order quantity for the air cooler condenser?
A: The minimum order quantity is 1.
Q: What are the packaging details for the air cooler condenser?
A: The packaging details include wooden case.
Q: What is the delivery time for the air cooler condenser?
A: The delivery time is 15 work days.
Q: What are the payment terms for the air cooler condenser?
A: The payment terms are T/T.
Q: What is the supply ability of the air cooler condenser?
A: The supply ability is 1000000pcs/year.
