Product Description:

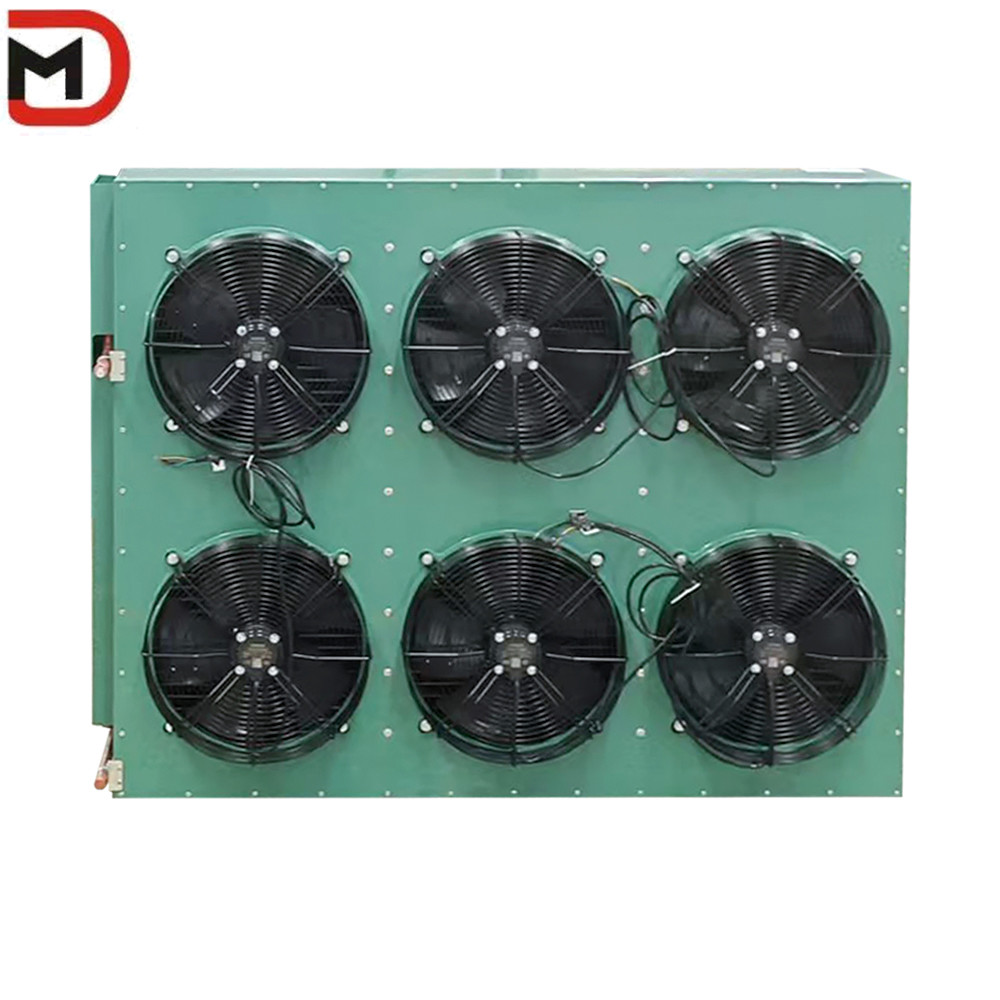

The Air-Cooled condenser is a cooling facility that is used in
tandem with other cooling equipment. The apparatus comes in three
different types which are recognized as H, V, and U. The H type is
designed for side blowing, while V and U types are best suited for
roof blowing.
This particular condenser has a well-designed structure and offers
great versatility, making it possible to pair with an array of
compressors. Its compatibility with various compressors makes it an
attractive option for customers searching for an adaptable cooling
solution.
The condenser also comes with window fin that can be customized to
meet different customers' needs. This feature allows for greater
flexibility when selecting the ideal layout for the cooling
equipment.
Technical Parameters:
FNH Series Fan Specifications
| Model | Area | Row bend several Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) | Intake pipe Ømm | The liquid pipe Ømm | Weight kg |
|---|
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3×7 | 1 | 90 | 1250 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4×7 | 1 | 90 | 1250 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4×8 | 1 | 164 | 1800 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4×9 | 1 | 164 | 1800 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4×10 | 1 | 216 | 3000 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5×10 | 1 | 216 | 3000 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4×8 | 2 | 2×164 | 2×1800 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4×8 | 2 | 2×164 | 2×1800 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4×9 | 2 | 2×216 | 2×3000 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4×12 | 2 | 2×216 | 2×3000 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4×14 | 2 | 2×216 | 2×3000 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4×14 | 2 | 2×216 | 2×3000 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4×18 | 4 | 4×164 | 4×1800 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4×20 | 4 | 4×216 | 4×1800 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4x20 | 4 | 4x216 | 4×3000 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4×3000 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4×24 | 4 | 4x216 | 4×3000 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5×24 | 4 | 4x290 | 4×4500 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5×24 | 4 | 4x290 | 4×4500 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6×24 | 4 | 4x449 | 4x6500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4×8500 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4×8500 | 380 | 32 | 25 | 260 |
Applications:
The Air Cooler Condenser unit is designed for use with air
conditioner condenser evaporator and freezer room condensing unit.
It is equipped with a direct drive motor and is available in both
380V and 220V. The unit comes with 2 to 6 fans, which can be
customized according to the user's requirements.
The Damai DM-FNN Air Cooler Condenser is perfect for use in various
scenarios. For example, it is ideal for use in supermarkets, cold
storage rooms, and other large spaces that require cooling. It is
also suitable for use in industrial applications such as chemical
plants, paper mills, and other manufacturing facilities.
In conclusion, the Damai DM-FNN H-Type Air Cooled Condenser is a
high-quality product that is suitable for various commercial and
industrial applications. It is equipped with a direct drive motor,
available in both 380V and 220V, has 2 to 6 fans, and is designed
for use with air conditioner condenser evaporator and freezer room
condensing unit. It is a reliable product that has been certified
with CE and ISO, has a minimum order quantity of 1, and is priced
between $200 and $100,000 depending on the order size and
customization requirements.
Customization:
Product Attributes:
- Brand Name: Damai
- Model Number: DM-FNN
- Place of Origin: China
- Certification: CE; ISO
- Minimum Order Quantity: 1
- Price: $200~$100000
- Packaging Details: Wooden Case
- Delivery Time: 15 Work Days
- Payment Terms: T/T
- Supply Ability: 1000000pcs/year
- Voltage: 380V/220V
- Application: Commercial/Industrial
- Cooling Method: Air Cooling
- Motor Type: Direct Drive
This Air Cooler Condenser can be customized for your needs, with
options such as Freezer Room Condensing Unit, Air Cooled Condenser,
and H-Type Air Cooled Condenser. Contact us to learn more about the
customization options available.
Packing and Shipping:
Product Packaging:
- 1 Air Cooler Condenser
- Instruction manual
- Warranty card
Shipping:
- Ships within 2 business days
- Free shipping within the United States
- International shipping available at an additional cost
- Shipped via UPS or FedEx
FAQ:
Q: What is the brand name of the Air Cooler Condenser?
A: The brand name of the Air Cooler Condenser is Damai.
Q: What is the model number of the Air Cooler Condenser?
A: The model number of the Air Cooler Condenser is DM-FNN.
Q: Where is the Air Cooler Condenser manufactured?
A: The Air Cooler Condenser is manufactured in China.
Q: What is the minimum order quantity for the Air Cooler Condenser?
A: The minimum order quantity for the Air Cooler Condenser is 1.
Q: What is the price range for the Air Cooler Condenser?
A: The price range for the Air Cooler Condenser is $200~$100000.
Q: What are the packaging details for the Air Cooler Condenser?
A: The packaging details for the Air Cooler Condenser are wooden
case.
Q: What is the delivery time for the Air Cooler Condenser?
A: The delivery time for the Air Cooler Condenser is 15 work days.
Q: What are the payment terms for the Air Cooler Condenser?
A: The payment terms for the Air Cooler Condenser are T/T.
