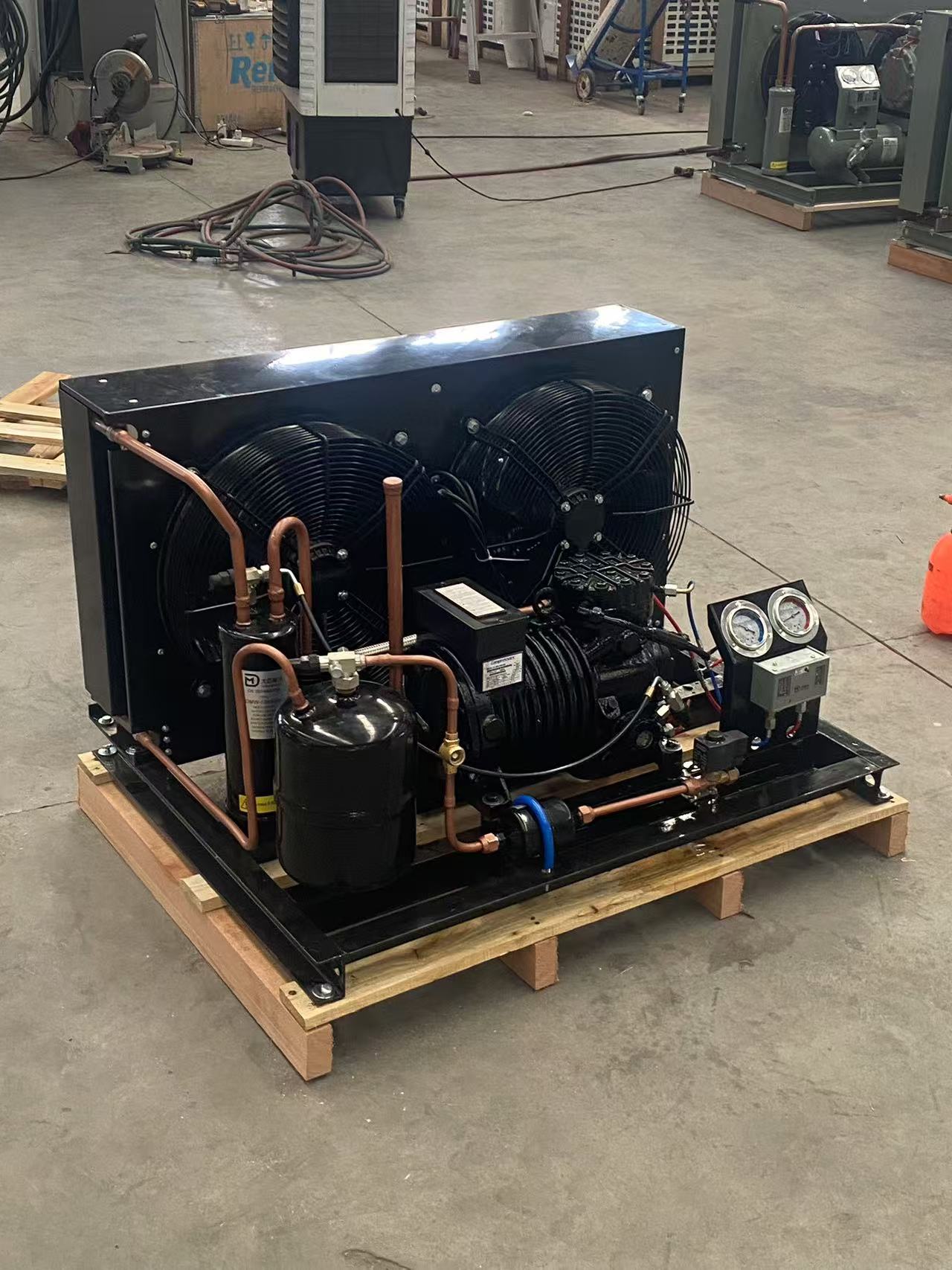

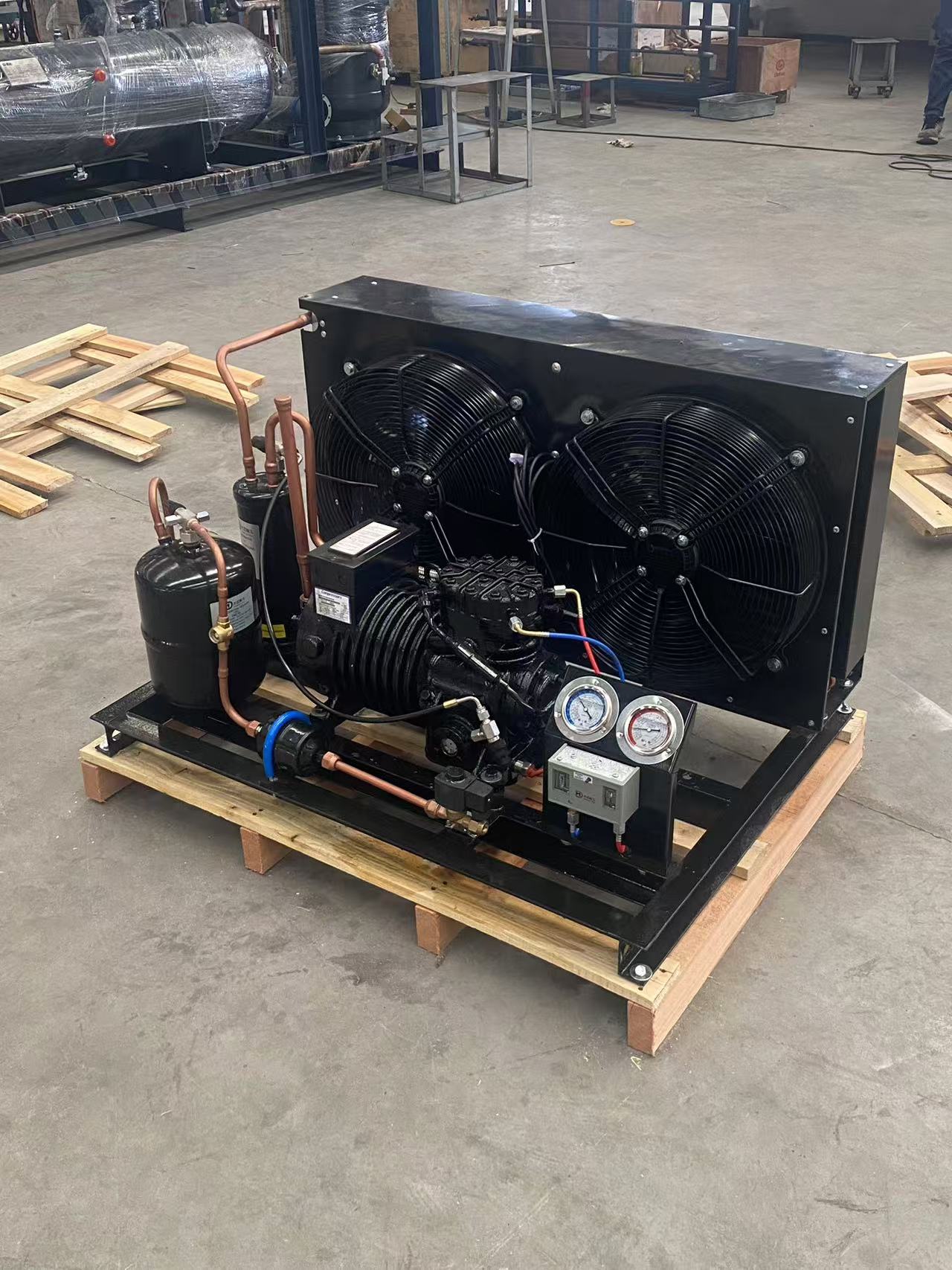

Commerical Condensing Unit with 380V/ 3p/ 50Hz Voltage and -35--23celsius Degree Evaporating Temp

Product Description:

The temperature range for this product is versatile, allowing you to choose the suitable temperature range based on your specific needs. The temperature range is from 0 to 10 ℃ and -15 to -25 ℃ which makes the product suitable for a wide range of applications.

The horsepower of this product covers a broad range from 3HP to 34HP, giving you flexibility in choosing the best horsepower range based on the project requirements. Selecting the right horsepower for your product will help achieve optimal performance and efficiency.

This product features a semi-hermetic piston compressor type. This compressor type has a reputation for its highly efficient and reliable performance, making it the preferred choice for industrial applications. With the semi-hermetic piston type, you can be confident in the product's long-term durability and optimal performance.

The voltage options for this product include 380V/3P/50Hz, 220V/3P/60Hz, and 380V/3P/60Hz. Selecting the correct voltage suitable for your power supply is essential to ensure the safe and efficient operation of the product. Please carefully determine which voltage option is most suitable to match your power supply.

This product is equipped with a comprehensive main machine configuration to ensure maximum performance levels. The main machine configuration includes:

1. Compressor
2. Condenser
3. Oil Heating
4. Liquid Receiver
5. Filter
6. Sight Glasses
7. Solenoid Valve
8. H/L P Gauge
9. Pressure Controller
10. Oil Pressure Protection
11. Vibration Eliminator
12. Oil Separator
13. Gas Separator
14. Suction Filter

The inclusion of these components ensures that the product operates optimally and consistently. By incorporating each component in the main machine configuration, the product functions smoothly and delivers reliable performance levels.

Features:

Our product is designed with a compact structure to ensure maximum efficiency and take up minimal space. It may be small in size, but it comes fully equipped with complete protective devices, offering a safe experience during the usage.

An increased condenser has been installed in our product to promote excellent heat dissipation, enhancing the lifespan of the machine. Moreover, the design is focused on providing a long-lasting cooling effect with sustained performance.

Using our product can reduce your electricity bill up to 30%, making it a smart and environmentally-friendly investment. The machine operates at low noise levels, delivering comfortable ambient surroundings.

Our product is built with high-quality brand accessories and parts only, ensuring optimal performance and longevity. You can trust that each component is precisely designed and carefully constructed with optimal durability in mind.

Applications:

A screw type parallel compressor refrigeration unit is available in two types: low-temp and high-temp. The low-temp type consists of several components including a screw compressor, liquid receiver, gauge panel, high and low-pressure controller, electric cabinet, oil separator, water-cooling type oil cooler, economizer, liquid supply filter, suction line filter, and injection components. Conversely, the high-temp type includes a screw compressor, liquid receiver, gauge panel, high and low-pressure controller, electric cabinet, oil separator, spray liquid cooling system, liquid supply filter, and suction line filter.

The screw type parallel compressor refrigeration unit offers the following benefits:

1. It uses semi-hermetic refrigeration compressors that offer good quality and reliable performance.
2. The product has multiple semi-hermetic compressors that are paralleled together to form one integrated system. All the compressors share the discharge pipes and suction pipes to form one unit, this paralleled system is simple to integrate into control and capacity adjustment.
3. The structure of the unit is compact to save installation space.
4. The multi-level energy regulation can be achieved based on the cooling load change, which also reduces the equipment running cost.
5. It reduces the impact on operation caused by machine failure, hence increasing the reliability of the unit operation.
6. The unit can provide both R404a and R22 units.

Support and Services:

Our Condensing Unit product comes with reliable technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced technicians is available to provide guidance and assistance with installation, operation, and maintenance of the product. We also offer comprehensive training programs to educate our customers on the proper use of the Condensing Unit. Additionally, we provide repair and replacement services for any faulty parts or components to minimize downtime and maximize productivity. Our goal is to provide top-notch technical support and services to our customers to ensure the longevity and efficiency of their Condensing Unit product.

Packing and Shipping:

Product Packaging:

• The condensing unit will be securely packaged in a sturdy cardboard box.
• The box will be labeled with product information and handling instructions.
• The unit may be disassembled for shipping purposes, but all necessary components will be included.

Shipping:

• The package will be shipped via a trusted carrier, such as UPS or FedEx.
• Shipping times may vary depending on the destination, but an estimated delivery date will be provided.
• Tracking information will be provided so that the customer can monitor the status of their shipment.
• Any damages incurred during shipping should be reported immediately to the carrier and to the seller.
