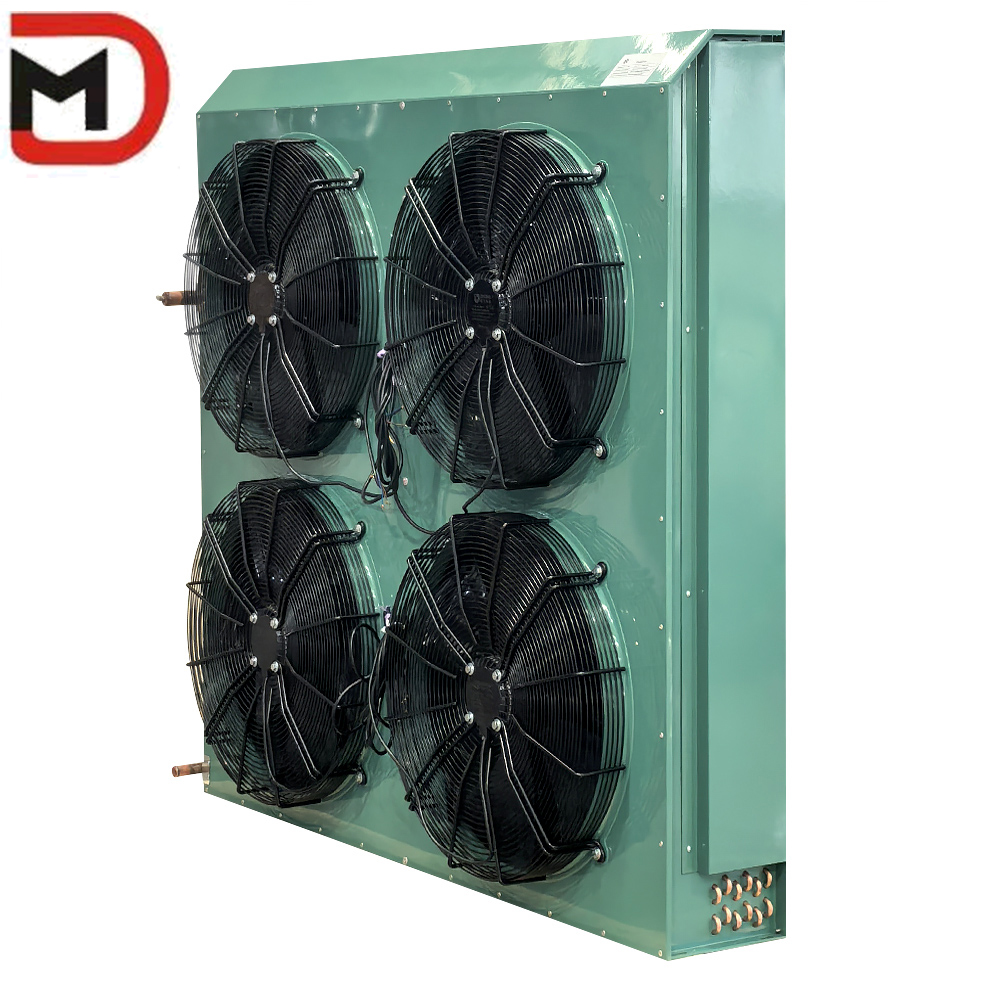

Product Description:
With its 2-6 fans, this air cooled condenser is designed to cool
even the most demanding environments. Its blast freezer condenser
is capable of cooling large volumes of air, making it ideal for use
in large cold storage facilities, walk-in freezers, and blast
freezers.
One of the key features of this air cooled condenser is its H-Type
design. This allows for a larger surface area, which in turn
increases the heat transfer rate and improves overall efficiency.
The H-Type design also allows for a smaller footprint, making it
easier to install in tight spaces.
The H-Type Air Cooled Condenser is designed to work with a wide
range of refrigerants, including R404a, R134a, and R22. This makes
it a versatile option for various refrigeration systems. Its robust
construction ensures that it can operate in even the harshest of
environments, making it a reliable choice for industrial and
commercial applications.
Overall, the H-Type Air Cooled Condenser is an excellent choice for
those looking for a high-performance air cooled condenser. Its
reliability, efficiency, and versatility make it a popular choice
for commercial and industrial applications. Whether you need to
cool a large cold storage facility or a walk-in freezer, this air
cooled condenser is up to the task.
Features:
- Product Name: Air Cooler Condenser
- Keyword: Blast Freezer Condenser
- Number Of Fans: 2-6
- Motor Type: Direct Drive
- Type: Air-Cooled
- Voltage: 380V/220V
Looking for an Air Condenser Cooler? Our Air Cooler Condenser, also
known as an Air Cooled Condenser or Refrigeration Air Cooled
Condenser, is perfect for blast freezer applications. With 2-6 fans
and a direct drive motor, it's the ideal choice for your
refrigeration needs. And with both 380V and 220V voltage options,
it's adaptable to your specific requirements.
Technical Parameters:
| Area | Row bend several | Fan | Intake pipe Ømm | The liquid pipe Ømm | Weight kg |
| Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) |
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 250 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3×7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4×7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4×8 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4×9 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4×10 | 1 | 216 | 3000 | 400 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5×10 | 1 | 216 | 3000 | 400 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4×8 | 2 | 2×164 | 2×1800 | 350 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4×8 | 2 | 2×164 | 2×1800 | 350 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4×9 | 2 | 2×216 | 2×3000 | 400 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4×12 | 2 | 2×216 | 2×3000 | 400 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4×14 | 2 | 2×216 | 2×3000 | 400 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4×14 | 2 | 2×216 | 2×3000 | 400 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4×18 | 4 | 4×164 | 4×1800 | 350 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4×20 | 4 | 4×216 | 4×1800 | 400 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4×20 | 4 | 4x216 | 4×3000 | 400 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4×3000 | 400 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4×24 | 4 | 4x216 | 4×3000 | 400 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5×24 | 4 | 4x290 | 4×4500 | 450 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5×24 | 4 | 4x290 | 4×4500 | 450 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6×24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4×8500 | 550 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4×8500 | 550 | 380 | 32 | 25 | 260 |
Applications:
One of the key applications for the Damai DM-FNU Air Cooler
Condenser is in freezer rooms. With its powerful cooling
capabilities and high-quality construction, this unit is perfect
for keeping freezer rooms at the optimal temperature for storing
frozen foods and other perishable items. Whether you are running a
small convenience store or a large warehouse facility, this air
cooler condenser can help you keep your products fresh and cool.
Overall, the Damai DM-FNU Air Cooler Condenser is a versatile and
high-quality cooling unit that is perfect for a wide range of
commercial and industrial applications. With its robust
construction, powerful cooling capabilities, and reliable
performance, it is an excellent choice for businesses and
organizations that need to keep their products and equipment cool
and at the optimal temperature.
Support and Services:
- Installation support
- Maintenance and repair services
- Troubleshooting assistance
- Warranty support
Our team of experts is dedicated to providing you with the highest
level of customer service and support. Contact us today for
assistance with your Air Cooler Condenser.
FAQ:
Q: Where is this air cooler condenser made?
A: This air cooler condenser is made in China.
Q: What is the minimum order quantity for this air cooler
condenser?
A: The minimum order quantity for this air cooler condenser is 1.
Q: What is the price range for this air cooler condenser?
A: The price range for this air cooler condenser is between $200
and $100000.
Q: What are the packaging details for this air cooler condenser?
A: The packaging details for this air cooler condenser are wooden
cases.
Q: What is the delivery time for this air cooler condenser?
A: The delivery time for this air cooler condenser is 15 work days.
Q: What are the payment terms for this air cooler condenser?
A: The payment terms for this air cooler condenser are T/T.
Q: What is the supply ability for this air cooler condenser?
A: The supply ability for this air cooler condenser is
1000000pcs/year.
