220V/380V/415V Power Supply Evaporator In Refrigeration System for
Cold Storage Room
Product Description:

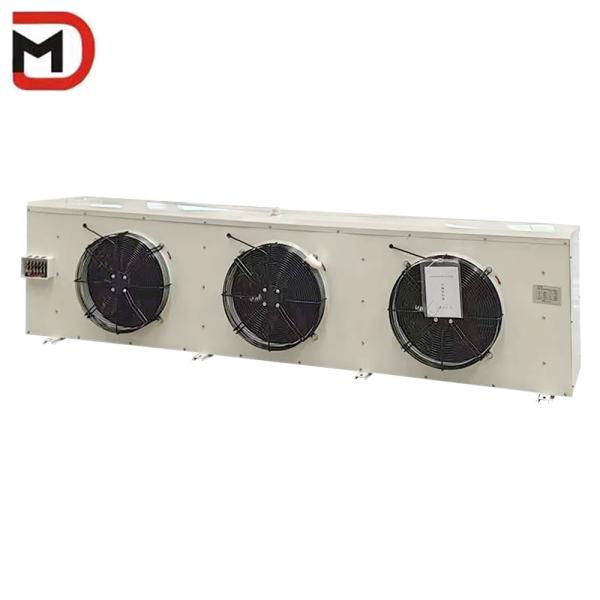

The D series air cooler is a type of cooling equipment used
in-stores that operate with a Freon refrigeration unit. The
different models in the D series - DL, DD, and DJ - divide
according to their use temperature and can be used for varying
store temperatures.
The DL type air cooler is primarily suited for cold storage at
approximately 0℃. The DD type air cooler is mainly suitable for
maintaining a temperature of 18℃ in cold storage. On the other
hand, the DJ type air cooler is most appropriate for a
quick-freezing store with temperatures below -25℃.
Features:
Product Features
Shell Design
The shell is made using spraying technology or embossed aluminum
plate and treated with spraying to ensure strong corrosion
resistance and a beautiful appearance.
Coil Arrangement
The coil is arranged in a novel way to reduce wind side resistance.
The copper tube is tightly attached to the fin by mechanical
expansion tube after installation, which reduces the contact
thermal resistance and increases the heat transfer efficiency.
Fan Motor
A special fan motor is selected with characteristics such as low
power consumption, large air volume, low noise, and long range. It
ensures normal operation even in humid and low-temperature
conditions.
Electric Heating Tube
The U-shaped tubular stainless steel electric heating tube with
strong insulation is used. The electric heating tube is inserted
into the coil. The spacing distribution and power design are
reasonable, resulting in short defrosting time and a good effect.
Hanger Design
The slot-type hanger is used for easy lifting.
| Model | Refrigerating capacity(W) | Nominal area(㎡) | Volume (L) | Fan Number | Fan diameter(mm) | Air volume (m³/h) |
| DD-1.2/7 | 1225 | 7 | 1.4 | 1 | 300 | 1563 |
| DD-2.8/15 | 2825 | 15 | 2.7 | 2 | 300 | 3126 |
| DD-3.7/22 | 3700 | 22 | 3.5 | 2 | 350 | 4580 |
| DD-5.3/30 | 5300 | 30 | 5.8 | 2 | 400 | 6800 |
| DD-7.0/40 | 7000 | 40 | 7.6 | 2 | 400 | 6800 |
| DD-11.2/60 | 11200 | 60 | 10.1 | 2 | 500 | 11000 |
| DD-14.9/80 | 14900 | 80 | 13.5 | 2 | 500 | 11000 |
| DD-18.7/100 | 18700 | 100 | 17.3 | 3 | 500 | 18000 |
| DD-22.3/120 | 22300 | 120 | 19.6 | 3 | 500 | 18000 |
| DD-26.2/140 | 26200 | 140 | 22.7 | 4 | 500 | 24000 |
| DD-29.8/160 | 29800 | 160 | 25.8 | 4 | 500 | 24000 |
| DD-37.2/200 | 37200 | 200 | 32.2 | 4 | 500 | 24000 |
| DD-48.4/255 | 48400 | 250 | 41.9 | 4 | 550 | 32000 |
| DD-57.9/310 | 57900 | 310 | 51.6 | 4 | 600 | 36000 |
Applications:
Air Coolers: A Temperature-Reducing Solution
Air coolers are a type of cooling system that is often used in
workshops and warehouses to help reduce the temperature of
machinery and equipment. By maintaining a cooler workspace, air
coolers can also improve production efficiency and reduce the risk
of machine malfunction due to overheating.
But air coolers are not just limited to industrial use. In the
commercial field, air coolers are widely used in shopping malls,
catering and other places to provide customers with a comfortable
shopping and dining environment. The cool and refreshing air
circulating in these spaces can keep customers comfortable,
encourage them to stay longer, and promote repeat business.
Customization:
Product Name: Cold Room Air Cooler, Cool Room Evaporators, Evaporation Air
Cooler
Brand Name: DM
Model Number: DM-LFJ-DD
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1
Price: 1000-100000
Packaging Details: Customization
Delivery Time: 20 days
Payment Terms: TT, L/C
Supply Ability: 300000/Year
Heat Transfer Efficiency: High
Type: Air Cooler
Dimensions: Custom
Cold Room Type: Cold Storage (Cold Room)
Fan Qty: 1pcs To 2,3,4 Pcs
Support and Services:
The Cold Room Evaporator product technical support and services
include:
- Installation guidance and support
- Product manuals and documentation
- Troubleshooting and issue resolution
- Regular maintenance and cleaning recommendations
- Repair and replacement services
- Technical training and education
- 24/7 customer service and support
