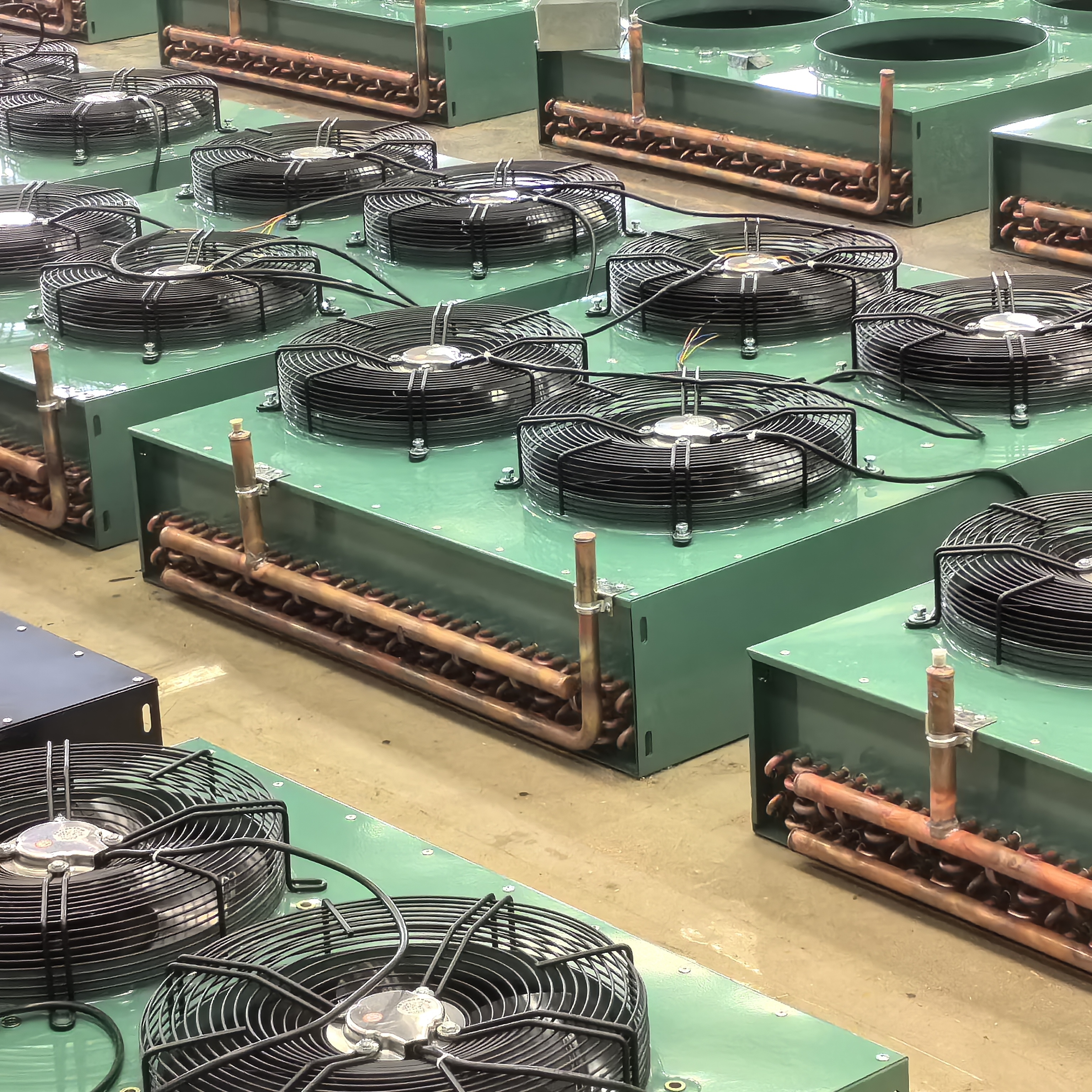

Product Description:
An Air-Cooled Condenser is a specialized type of cooling system
that is typically used in conjunction with larger cooling
equipment. These systems come in three different types which
include horizontal (H), vertical (V), and W-shaped (W). The H type
is designed for side blowing, while the V and W types are designed
for roof blowing.
| Model | Area | Row bend several | Fan | Intake pipe Ømm | The liquid pipe Ømm | Weight kg |
| Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) |
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 250 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4*8 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4*9 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4*10 | 1 | 216 | 3000 | 400 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5*10 | 1 | 216 | 3000 | 400 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4*9 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4*12 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4*18 | 4 | 4*164 | 4*1800 | 350 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4*20 | 4 | 4*216 | 4*1800 | 400 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4*20 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4*24 | 4 | 4x216 | 4*3000 | 400 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6*24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 260 |
These systems have a well-designed structure that provides optimal
cooling performance. They are also highly interchangeable and can
be equipped with a variety of compressors to meet various customer
needs.
In addition, there are two different types of fins available for
these systems: window fin and honeycomb fin. This allows customers
to select the type of fins that best meet their specific
requirements.
Applications:
The H-type condenser is commonly utilized in refrigeration units to
correspond with cold storage at varying temperatures. It is
designed to transfer heat from refrigerant vapors, which are
usually high-pressure and high-temperature, to the surrounding air
using a condensing process. This type of condenser is often
classified by its top, middle, and bottom parts, with each part
featuring specific design elements to enable efficient heat
transfer and cooling performance.
The H-type condenser has become a go-to choice for commercial and
industrial refrigeration systems due to its exceptional efficiency
in transferring heat and its capability of handling different
temperature ranges. Additionally, it is known to operate with
minimal noise levels and provides optimum cooling performance with
low maintenance requirements. The condenser is also flexible and
can be customized to match specific cooling needs and
specifications.
Overall, the H-type condenser is a crucial component of
refrigeration systems that enable the efficient cooling of both
high and low-temperature cold storages. Its high efficiency, low
noise levels, and flexibility in operation have made it one of the
most preferred condenser types among manufacturers and users of
refrigeration systems.
H-type Condenser in Refrigeration Units
The H-type condenser is commonly utilized in refrigeration units to
correspond with cold storage at varying temperatures. It is
designed to transfer heat from refrigerant vapors, which are
usually high-pressure and high-temperature, to the surrounding air
using a condensing process. This type of condenser is often
classified by its top, middle, and bottom parts, with each part
featuring specific design elements to enable efficient heat
transfer and cooling performance.
The H-type condenser has become a go-to choice for commercial and
industrial refrigeration systems due to its exceptional efficiency
in transferring heat and its capability of handling different
temperature ranges. Additionally, it is known to operate with
minimal noise levels and provides optimum cooling performance with
low maintenance requirements. The condenser is also flexible and
can be customized to match specific cooling needs and
specifications.
Overall, the H-type condenser is a crucial component of
refrigeration systems that enable the efficient cooling of both
high and low-temperature cold storages. Its high efficiency, low
noise levels, and flexibility in operation have made it one of the
most preferred condenser types among manufacturers and users of
refrigeration systems.
Packing and Shipping:
Product Packaging:
The Air Cooler Condenser will be packed securely in a sturdy
cardboard box.
The product will be wrapped in bubble wrap to prevent any damage
during shipping.
All necessary manuals and installation guides will be included in
the package.
Shipping:
The Air Cooler Condenser will be shipped via a reliable courier
service.
The customer will receive a tracking number to monitor the status
of the delivery.
FAQ:
Q: Where is the Air Cooler Condenser made?
A: The Air Cooler Condenser is made in China.
Q: What certifications does the Air Cooler Condenser have?
A: The Air Cooler Condenser is certified with CE and ISO.
Q: What is the minimum order quantity for the Air Cooler Condenser?
A: The minimum order quantity for the Air Cooler Condenser is 1.
Q: How is the Air Cooler Condenser packaged?
A: The Air Cooler Condenser is packaged in a wooden case.
Q: What is the delivery time for the Air Cooler Condenser?
A: The delivery time for the Air Cooler Condenser is 15 work days.
