Product Description:

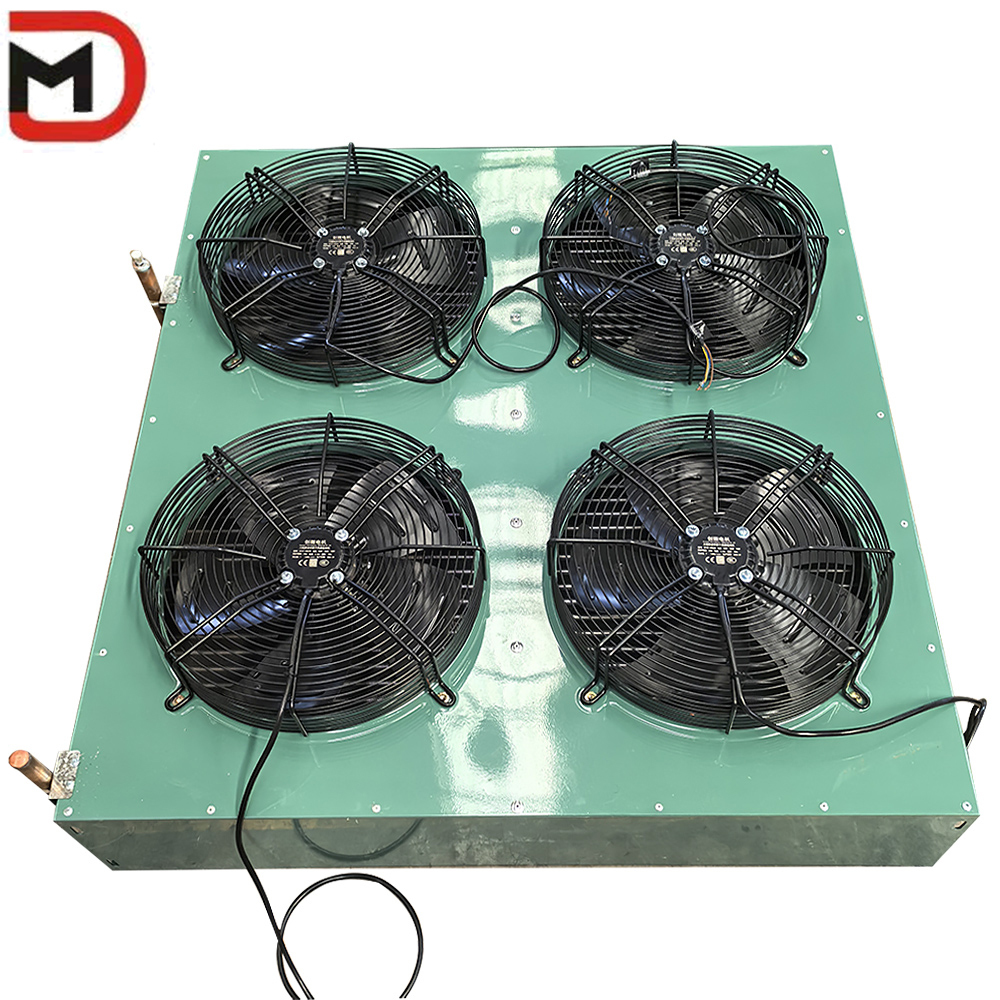

The Air-Cooled Condenser is a type of cooling system facility that
is often used in conjunction with equipment that requires cooling.
The Air-Cooled Condenser comes in three different types: H, V, and
W. The H type of Air-Cooled Condenser is designed to facilitate
side blowing. In contrast, the V and W types are designed to
facilitate roof blowing.
One of the standout features of this condenser is that it has a
reasonable structure and good interchangeability. This means that
it can be conveniently equipped with different types of
compressors, depending on the specific needs of the user.
Applications:
Refrigeration units rely heavily on the use of condensers to
operate efficiently. These devices function by converting gas
refrigerant into a liquid state, which allows for heat to be
dissipated more easily. This change in state occurs as a result of
the refrigerant passing through a series of coils where it is
cooled by air or water.
Condensers play an essential role in the operation of various types
of cold storage facilities, from walk-in freezers to large
warehouse operations. Without condensers, such facilities would be
unable to maintain the appropriate temperature for perishable
items, and food spoilage and other problems would be rampant.
Parameter:
| Model | Area | Row bend several | Fan | Intake pipe Ømm | The liquid pipe Ømm | Weight kg |
| Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) |
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 250 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4*8 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4*9 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4*10 | 1 | 216 | 3000 | 400 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5*10 | 1 | 216 | 3000 | 400 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4*9 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4*12 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4*18 | 4 | 4*164 | 4*1800 | 350 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4*20 | 4 | 4*216 | 4*1800 | 400 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4*20 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4*24 | 4 | 4x216 | 4*3000 | 400 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6*24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 260 |
Support and Services:
The Air Cooler Condenser product is designed to efficiently cool
air in a variety of applications. Our technical support team is
available to assist with any product inquiries or issues that may
arise, including:
Installation guidance and support
Troubleshooting assistance
Product maintenance recommendations
Product repair services
In addition to our technical support services, we also offer a
range of maintenance and repair services for the Air Cooler
Condenser product. Our team of experienced technicians can provide:
Regular maintenance services to ensure optimal performance and
efficiency
Repair services for any product issues or malfunctions
Replacement parts for any damaged or worn components
Our goal is to ensure that our customers receive the highest level
of support and service for their Air Cooler Condenser product.
Please contact us for more information on our technical support and
service offerings.
