Product Description:

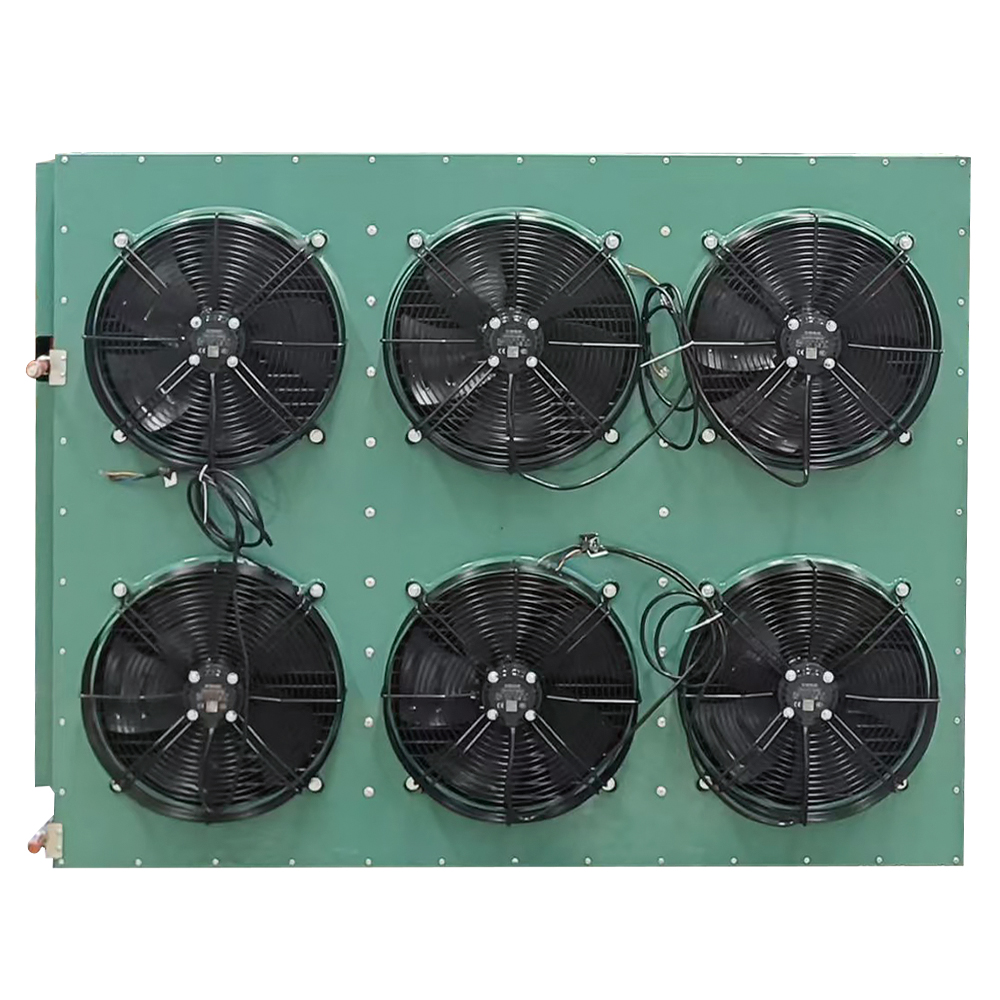

Air-Cooled Condenser: An Introduction
An air-cooled condenser is a type of radiating facility that is
used in conjunction with cooling equipment. It is equipped with
three different types of condensers, namely the H, V, and U
condenser. The H-type condenser is designed for side blowing, while
the V and U type condensers are designed for roof blowing.
Structure and Interchangeability
The air-cooled condenser is designed with a reasonable structure
and boasts good interchangeability. It can be equipped with
different kinds of compressors depending on the customer's needs,
making it a highly versatile cooling solution.
Two Fin Type Options
Customers can choose between two different fin types for their
air-cooled condenser: window fin and honeycomb fin. Both options
are designed to meet the unique needs of different customers.
| Model | Area | Row bend several | Fan | Intake pipe Ømm | The liquid pipe Ømm | Weight kg |
| Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) |
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 250 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3×7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4×7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4×8 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4×9 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4×10 | 1 | 216 | 3000 | 400 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5×10 | 1 | 216 | 3000 | 400 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4×8 | 2 | 2×164 | 2×1800 | 350 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4×8 | 2 | 2×164 | 2×1800 | 350 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4×9 | 2 | 2×216 | 2×3000 | 400 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4×12 | 2 | 2×216 | 2×3000 | 400 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4×14 | 2 | 2×216 | 2×3000 | 400 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4×14 | 2 | 2×216 | 2×3000 | 400 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4×18 | 4 | 4×164 | 4×1800 | 350 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4×20 | 4 | 4×216 | 4×1800 | 400 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4×20 | 4 | 4x216 | 4×3000 | 400 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4×3000 | 400 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4×24 | 4 | 4x216 | 4×3000 | 400 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5×24 | 4 | 4x290 | 4×4500 | 450 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5×24 | 4 | 4x290 | 4×4500 | 450 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6×24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4×8500 | 550 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4×8500 | 550 | 380 | 32 | 25 | 260 |
Applications:
Condensers play a crucial role in refrigeration systems, enabling
the transfer of heat from the refrigerant to the condensed air or
water. They are a ubiquitous component of cold storage facilities
and refrigeration units used in industries such as food and
beverage processing, pharmaceuticals, and electronics.
Cold storage facilities rely heavily on condensers to maintain low
temperatures within their storage units to keep perishable items
such as food and vaccines fresh for extended periods. Depending on
the size and purpose of the cold storage facility, the condenser
system can be a separate unit or integrated into the refrigeration
system.
Overall, the use of condensers is crucial in the refrigeration
industry to provide efficient and reliable cooling for a wide range
of applications.
Condensers play a crucial role in refrigeration systems, enabling the
transfer of heat from the refrigerant to the condensed air or
water. They are a ubiquitous component of cold storage facilities
and refrigeration units used in industries such as food and
beverage processing, pharmaceuticals, and electronics.
In refrigeration systems, the condenser is typically located on the outside of the refrigerator or
freezer, where it utilizes ambient air or water to cool the
refrigerant. This process of heat exchange helps to reduce the
temperature of the refrigerant, allowing it to absorb heat from the
refrigerated space and keep stored items cool.
Cold storage facilities rely heavily on condensers to maintain low temperatures within
their storage units to keep perishable items such as food and
vaccines fresh for extended periods. Depending on the size and
purpose of the cold storage facility, the condenser system can be a
separate unit or integrated into the refrigeration system.
Overall, the use of condensers is crucial in the refrigeration industry to provide efficient and
reliable cooling for a wide range of applications.
Customization:
The Place of Origin is Zhejiang, China. The Minimum Order Quantity
is 1 and the Price ranges from $200 to $100000. Packaging Details
include a Wooden Case while the Delivery Time takes 30 Work Days.
Payment Terms include T/T and L/C while the Supply Ability is at
1000000pcs/year. The Voltage is at 220-240V/380-415V and the
Application is for Condenser Unit.
Support and Services:
The Air Cooler Condenser product technical support and services
include:
Installation guidelines and support
Maintenance instructions and suggestions
Troubleshooting assistance and solutions
Product performance optimization recommendations
Warranty information and claim support
Our technical support team is available to answer any questions or
concerns regarding the Air Cooler Condenser product.
