Product Description:

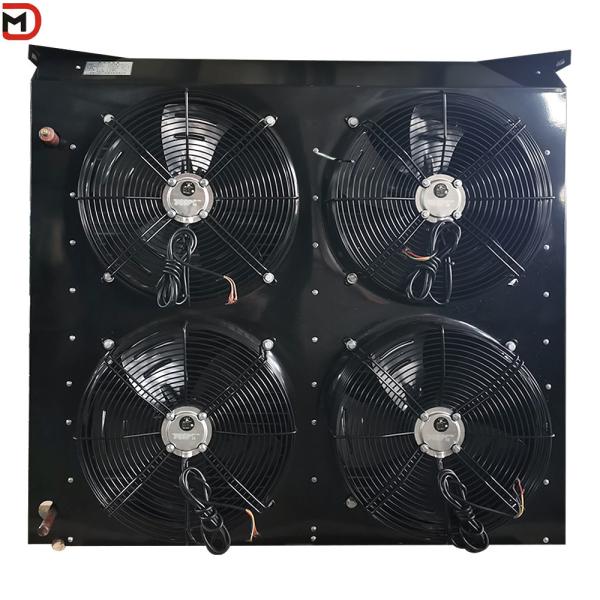

Air-Cooled Condenser is a type of cooling system that is commonly
used to complement cooling equipment. This system comes in three
different types which are H, V, and W. H-type is characterized by
side-blowing, while V and W types are known for roof-blowing.
This system is designed to have a reasonable structure and good
interchangeability, and it can accommodate various kinds of
compressors to cater to different customers' needs.
The Air-Cooled Condenser comes with window fin and honeycomb fin.
These fins are designed to offer customized solutions to different
customers depending on their requirements.
| Model | Area | Row bend several | Fan | Intake pipe Ømm | The liquid pipe Ømm | Weight kg |
| Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) |
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 250 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4*8 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4*9 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4*10 | 1 | 216 | 3000 | 400 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5*10 | 1 | 216 | 3000 | 400 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4*9 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4*12 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4*18 | 4 | 4*164 | 4*1800 | 350 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4*20 | 4 | 4*216 | 4*1800 | 400 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4*20 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4*24 | 4 | 4x216 | 4*3000 | 400 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6*24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 260 |
Applications:
The H-type condenser plays a crucial role in refrigeration units.
Its primary function is to match the needs of cold storage at
varying temperatures.
This type of condenser is specifically designed to serve as an
integral component of refrigeration systems. The cold storage units
require varying levels of cooling depending on the temperature
requirement. The H-type condenser is the perfect solution to ensure
that the cold storage temperatures remain consistent.
The condenser is responsible for converting the high-pressure,
high-temperature refrigerant vapor into liquid form through a
process called condensation. The H-type condenser facilitates this
process by providing a large surface area for heat exchange to
occur, allowing the refrigerant to cool and condense at the desired
temperature.
In conclusion, the H-type condenser is an essential component of
refrigeration units, ensuring that cold storage temperatures remain
consistent. Its unique design and functionality make it a reliable
and efficient solution for matching the cooling needs of cold
storage at various temperatures.
Packing and Shipping:
Product Packaging:
The Air Cooler Condenser product will be carefully packaged in a
sturdy cardboard box with internal foam padding to ensure that it
arrives in perfect condition. The box will also be clearly labeled
with the product name and any handling instructions to ensure safe
delivery.
Shipping:
We offer free standard shipping on all Air Cooler Condenser orders
within the United States. Orders will be processed within 1-3
business days and shipped via UPS or FedEx. Delivery times will
vary depending on your location, but you can expect your order to
arrive within 5-7 business days. Expedited shipping options are
also available at an additional cost.
FAQ:
Frequently Asked Questions:
Q: What is the model number of the Air Cooler Condenser?
A: The model number of the Air Cooler Condenser is DM-LNQ-H.
Q: Where is the Air Cooler Condenser made?
A: The Air Cooler Condenser is made in China.
Q: Does the Air Cooler Condenser have any certification?
A: Yes, the Air Cooler Condenser has CE and ISO certification.
Q: What is the minimum order quantity for the Air Cooler Condenser?
A: The minimum order quantity for the Air Cooler Condenser is 1.
Q: What are the packaging details for the Air Cooler Condenser?
A: The Air Cooler Condenser is packaged in a wooden case.
Q: What is the delivery time for the Air Cooler Condenser?
A: The delivery time for the Air Cooler Condenser is 30 work days.
Q: What are the payment terms for the Air Cooler Condenser?
A: The payment terms for the Air Cooler Condenser are T/T and L/C.
