Product Description:

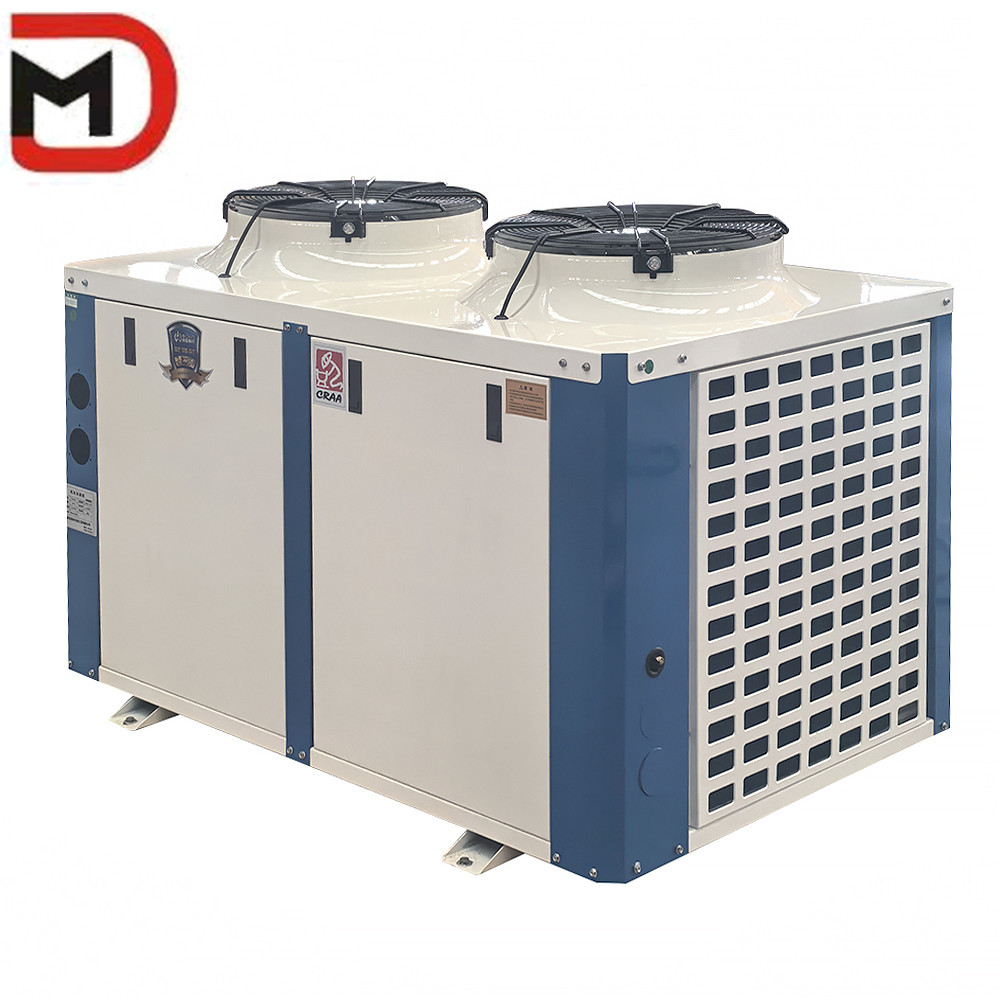

Air-Cooled Condenser is a type of cooling facility that is utilized
in conjunction with cooling equipment. There are three variations
of this type of condenser available: H, V, and U.
The H type is designed for side blowing, while the V and U types
are constructed for roof blowing. The design of this type of
condenser is well-structured, allowing for excellent
interchangeability. Additionally, it can be equipped with a variety
of compressors to meet specific customer needs.
The Air-Cooled Condenser is available with two types of fins:
window fin and honeycomb fin, making it possible to address the
needs and preferences of different customers.
Features:
The Air-Cooled Condenser is a type of cooling facility used in
conjunction with cooling equipment. It is available in three types:
H, V, and W. The H type operates by blowing air from the side,
while the V and W types blow air from the roof.
Its structure is designed to be practical and has excellent
interchangeability. It is possible to use various types of
compressors with this condenser.
Additionally, there are two types of fins available for customers:
window fin and honeycomb fin. These variations can meet the
specific requirements of different customers.
Technical Parameters:
| Model | Nominal heatexchange capacity | Heatexchange area | Fan | Water inlet tube diameter(mm) | Water outlet tube diameter(mm) | Weight(kg) |
| Number | Fan diameter(mm) | Wind capacity | Power(W) | Voltage(V) |
| FNU-17.2/55 | 17200 | 55 | 1 | 500 | 6500 | 449 | 3-380 | 22 | 16 | 85 |
| FNU-21.8/70 | 21800 | 70 | 2 | 450 | 2X4500 | 2X290 | 3-380 | 25 | 19 | 105 |
| FNU-24.9/80 | 24900 | 80 | 2 | 500 | 2X6500 | 2X449 | 3-380 | 25 | 19 | 120 |
| FNU-31.1/100 | 31100 | 100 | 2 | 500 | 2X6500 | 2X449 | 3-380 | 28 | 19 | 135 |
| FNU-38.8/125 | 38800 | 125 | 2 | 550 | 2X8700 | 2X670 | 3-380 | 28 | 19 | 150 |
| FNU-46.5/150 | 46500 | 150 | 2 | 550 | 2X8700 | 2X670 | 3-380 | 28 | 22 | 160 |
| FNU-55.8/180 | 55800 | 180 | 2 | 600 | 2X10800 | 2X825 | 3-380 | 28 | 22 | 185 |
| FNU-62.0/200 | 62000 | 200 | 2 | 600 | 2X10800 | 2X825 | 3-380 | 32 | 25 | 195 |
Applications:
The Damai DM-FNU is a high-quality refrigeration air cooled
condenser that is made in China. this product can be trusted to
provide reliable and efficient cooling for commercial and
industrial applications.
This air cooled condenser is designed with 2-6 fans, making it
suitable for small to large-scale cooling requirements. Its direct
drive motor type ensures that it runs smoothly and with minimal
noise, making it ideal for use in sensitive environments such as
hospitals, laboratories, and data centers.
The Damai DM-FNU air cooled condenser is commonly used in a variety
of occasions and scenarios, including:
- Supermarkets
- Restaurants
- Hotels
- Cold Storage Facilities
- Food Processing Plants
- Pharmaceutical Manufacturing Plants
- Chemical Processing Plants
- Industrial Manufacturing Plants
With a minimum order quantity of 1 and a price range of
$200-$100000, this product is accessible to a wide range of
customers with different budget levels. The Damai DM-FNN air cooled
condenser is packed in a sturdy wooden case to ensure its safe
delivery to the customer. Delivery time takes 15 work days, and
payment terms are flexible with T/T as the preferred method of
payment.
The Damai DM-FNN air cooled condenser has a supply ability of up to
1000000pcs/year, making it an ideal choice for businesses that
require a large amount of cooling capacity. With its high-quality
components and reliable performance, this product is an excellent
investment for any business that needs efficient cooling for their
operations.
Support and Services:
Additionally, we offer a range of services to support the ongoing
maintenance and repair of the air cooler condenser. Our services
include routine maintenance, repairs, and replacement parts. We
also offer customized service plans to meet your specific needs and
budget. Our team of experienced technicians is committed to
delivering timely and efficient service to minimize downtime and
keep your equipment running smoothly.
Packing and Shipping:
Product Packaging:
The Air Cooler Condenser product will be carefully packaged in a
sturdy cardboard box to ensure that it arrives at its destination
in perfect condition. The condenser will be wrapped in protective
materials to prevent any damage during shipping.
Shipping:
We offer free standard shipping for all Air Cooler Condenser
products within the United States. Orders will be processed and
shipped within 1-2 business days. Delivery times will vary
depending on the shipping destination, but our standard shipping
usually takes 3-5 business days.
