Product Description:

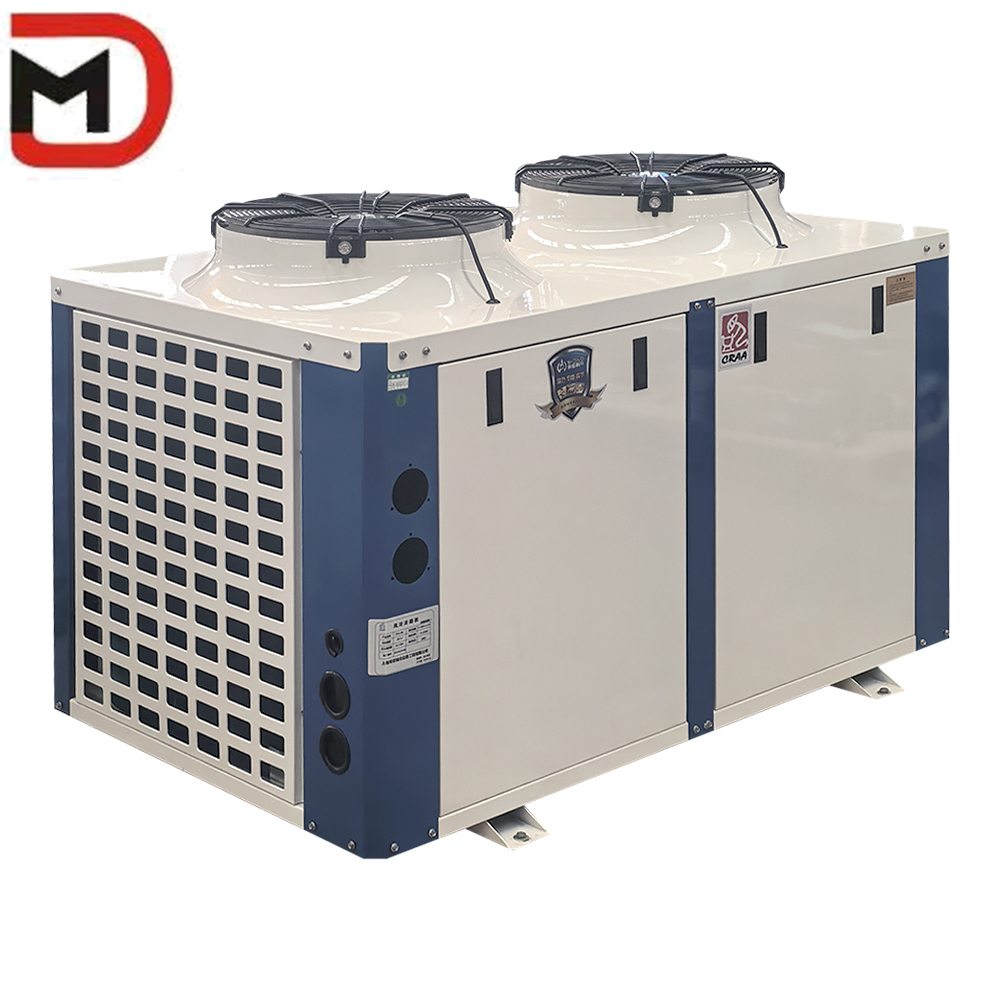

An Air-Cooled condenser is a radiating facility that is commonly
used to match with cooling equipment. The main purpose of this
equipment is to effectively dissipate the heat from the coolant
that flows through the condenser. There are three types of
Air-Cooled condensers available in the market – H, V, and U.
The H type is a side blowing type, while V and U types are roof
blowing type. Each type has its unique advantages and is used in
different applications. Additionally, the Air-Cooled condenser has
a reasonable structure and good interchangeability, which makes it
easy to assemble and disassemble. It can also be equipped with
different kinds of compressors based on the requirements of the
customer.
The Air-Cooled condenser comes with two types of fins – window fin
and honeycomb fin. These fins are designed to meet the different
requirements of customers and optimize the heat-dissipating
efficiency of the condenser. This feature makes it a suitable
option for many industries, including HVAC systems, food and
beverage, and industrial refrigeration, among others.
Features:
The Air-Cooled Condenser is a type of cooling equipment that
requires a radiating facility to function. It comes in three
different types: H, V, and U.
| Model | Nominal heatexchange capacity | Heatexchange area | Fan | Water inlet tube diameter(mm) | Water outlet tube diameter(mm) | Weight(kg) |
| Number | Fan diameter(mm) | Wind capacity | Power(W) | Voltage(V) |
| FNU-17.2/55 | 17200 | 55 | 1 | 500 | 6500 | 449 | 3-380 | 22 | 16 | 85 |
| FNU-21.8/70 | 21800 | 70 | 2 | 450 | 2X4500 | 2X290 | 3-380 | 25 | 19 | 105 |
| FNU-24.9/80 | 24900 | 80 | 2 | 500 | 2X6500 | 2X449 | 3-380 | 25 | 19 | 120 |
| FNU-31.1/100 | 31100 | 100 | 2 | 500 | 2X6500 | 2X449 | 3-380 | 28 | 19 | 135 |
| FNU-38.8/125 | 38800 | 125 | 2 | 550 | 2X8700 | 2X670 | 3-380 | 28 | 19 | 150 |
| FNU-46.5/150 | 46500 | 150 | 2 | 550 | 2X8700 | 2X670 | 3-380 | 28 | 22 | 160 |
| FNU-55.8/180 | 55800 | 180 | 2 | 600 | 2X10800 | 2X825 | 3-380 | 28 | 22 | 185 |
| FNU-62.0/200 | 62000 | 200 | 2 | 600 | 2X10800 | 2X825 | 3-380 | 32 | 25 | 195 |
The H type is a side blowing unit, while the V and U types are roof
blowing units. This makes them suitable for a wide range of
applications.
The Air Cooled Condenser boasts an impressive structure that can be
interchanged to suit different requirements, such as compressors of
different sizes and capacities.
The other distinctive features of this particular product is that
it comes with two different types of fins: window fin and honeycomb
fin. Whatever your preference may be, we can meet your needs.
Applications:
The Damai DM-FNN H-Type Air Cooled Condenser is designed with
direct drive motor type, which ensures its durability and
efficiency. Its cooling method is direct cooling, making it ideal
for use in commercial and industrial settings such as data centers,
factories, and power plants.
The Damai DM-FNN H-Type Air Cooled Condenser is packaged in a
wooden case to ensure its safe delivery. The delivery time for this
product is 15 work days and the payment terms are T/T. With a
supply ability of 1000000pcs/year, the Damai DM-FNN H-Type Air
Cooled Condenser is readily available for businesses with high
demand.
Overall, the Damai DM-FNN H-Type Air Cooled Condenser is an
excellent choice for businesses in need of a reliable and efficient
cooling system. Its direct cooling method and direct drive motor
type make it ideal for industrial and commercial use. Whether it's
for a data center, factory, or power plant, this air cooled
condenser is sure to provide the necessary cooling power and
longevity.
Customization:
Customize your Damai DM-FNU Air Cooler Condenser to fit your
specific needs:
- Brand Name: Damai
- Model Number: DM-FNU
- Place of Origin: China
- Minimum Order Quantity: 1
- Packaging Details: Wooden Case
- Delivery Time: 15 Work Days
- Payment Terms: T/T
- Supply Ability: 1000000pcs/year
- Voltage: 380V
- Keyword: Blast Freezer Condenser, Freezer Room Condensing Unit,
Steam Condenser, H-Type Air Cooled Condenser
- Type: Air-Cooled
- Motor Type: Direct Drive
Support and Services:
The Air Cooler Condenser product comes with a dedicated technical
support team ready to assist you with any product-related questions
or issues. Our team is available via phone, email, or online chat
during regular business hours. We also offer a range of services to
ensure the optimal performance of your product, including
installation assistance, maintenance and repair services, and
replacement parts. Our experienced technicians are trained to
diagnose and resolve any issues you may encounter, and our goal is
to provide you with the best possible customer experience.
Packing and Shipping:
Product Packaging:
The Air Cooler Condenser will be packaged securely in a sturdy
cardboard box to ensure safe delivery to your doorstep. The
condenser will be wrapped in bubble wrap to prevent any damage
during transportation. The packaging will also include an
instruction manual for installation and use.
Shipping:
The Air Cooler Condenser will be shipped via standard ground
shipping and should arrive within 5-7 business days. We also offer
expedited shipping options for an additional fee. Shipping fees
will be calculated at checkout based on the destination and
shipping speed chosen.
