Thermal And Electronic Expansion Valves For Refrigeration Parts
Certified Products
1. Application field:
Danfoss expansion valves are mainly used in industries such as cold
storage systems, chillers, and testing equipment
The expansion valve product line provided by Danfoss includes
thermal expansion valves and electronic expansion valves, which are
suitable for various cold storage and air conditioning equipment
Table parameters
| Refrigerant | Models | Pressure equaliser | Capillary (M) | Connections | Product Code No |
| inlet x outlet | N series -40~+10ºC | NM series -40~-5ºC | NL series -40~-15ºC | B series -60~-25ºC |
|
| in.xin. | mmxmm | without MOP | with MOP | with MOP | with MOP | without MOP | with MOP |

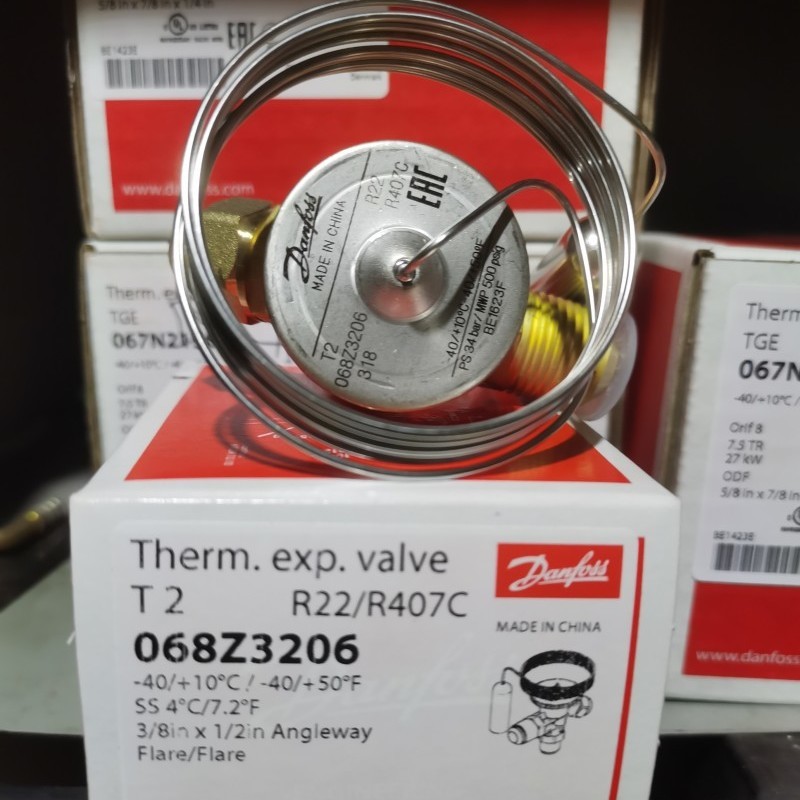

| R22 | TX2 | internal | 1.5 | 3/8x1/2 | 10x12 | 068Z3206 | 068Z3208 | 068Z3224 | 068Z3226 | 068Z3207 | 068Z3228 |
| TEX2 | external | 1.5 | 3/8x1/2 | 10x12 | 168Z3209 | 068Z3211 | 068Z3225 | 068Z3227 | 068Z3210 | 068Z3229 |
| R407C | TZ2 | internal | 1.5 | 3/8x1/2 | 10x12 | 068Z3496 | 066Z3516 | | | | |
| TEZ2 | external | 1.5 | 3/8x1/2 | 10x12 | 068Z3501 | 068Z3517 | | | | |
| R134a | TN2 | internal | 1.5 | 3/8x1/2 | 10x12 | 068Z3346 | 068Z3347 | 068Z3393 | 068Z3369 | | |
| TEN2 | external | 1.5 | 3/8x1/2 | 10x12 | 068Z3348 | 068Z3349 | 068Z3392 | 068Z3370 | | |
| R404A / R507 | TS2 | internal | 1.5 | 3/8x1/2 | 10x12 | 068Z3400 | 068Z3402 | 066Z3406 | 068Z3408 | 068Z3401 | 068Z3410 |
| TES2 | external | 1.5 | 3/8x1/2 | 10x12 | 068Z3403 | 066Z3405 | 068Z3407 | 068Z3409 | 068Z3404 | 068Z3411 |
| R12 | TF2 | internal | 1.5 | 3/8x1/2 | 10x12 | 068Z3202 | 069Z3236 | 068Z3220 | 068Z3222 | | |
| TEF2 | external | 1.5 | 3/8x1/2 | 10x12 | 068Z3204 | 068Z3237 | 068Z3221 | 068Z3223 | | |
| R502 | TY2 | internal | 1.5 | 3/8x1/2 | 10x12 | 068Z3212 | 068Z3214 | 068Z3230 | 068Z3232 | 068Z3213 | 068Z3234 |
| TEY2 | external | 1.5 | 3/8x1/2 | 10x12 |
,
Or there are other models that you can privately chat with me about
separately.
Throttling and pressure reduction: The expansion valve throttles
and reduces the pressure of the high-temperature and high-pressure
liquid refrigerant condensed by the condenser, making it a
low-temperature and low-pressure gas-liquid mixture that is easy to
evaporate, creating conditions for the evaporation of the
refrigerant.
Adjust flow rate: The expansion valve can automatically adjust the
refrigerant flow into the evaporator based on the temperature
signal obtained from the evaporator temperature sensor, in order to
adapt to the constantly changing cooling load requirements.
Protecting the compressor: Another important function of the
expansion valve is to protect the compressor from liquid hammer and
abnormal overheating of the evaporator outlet vapor.

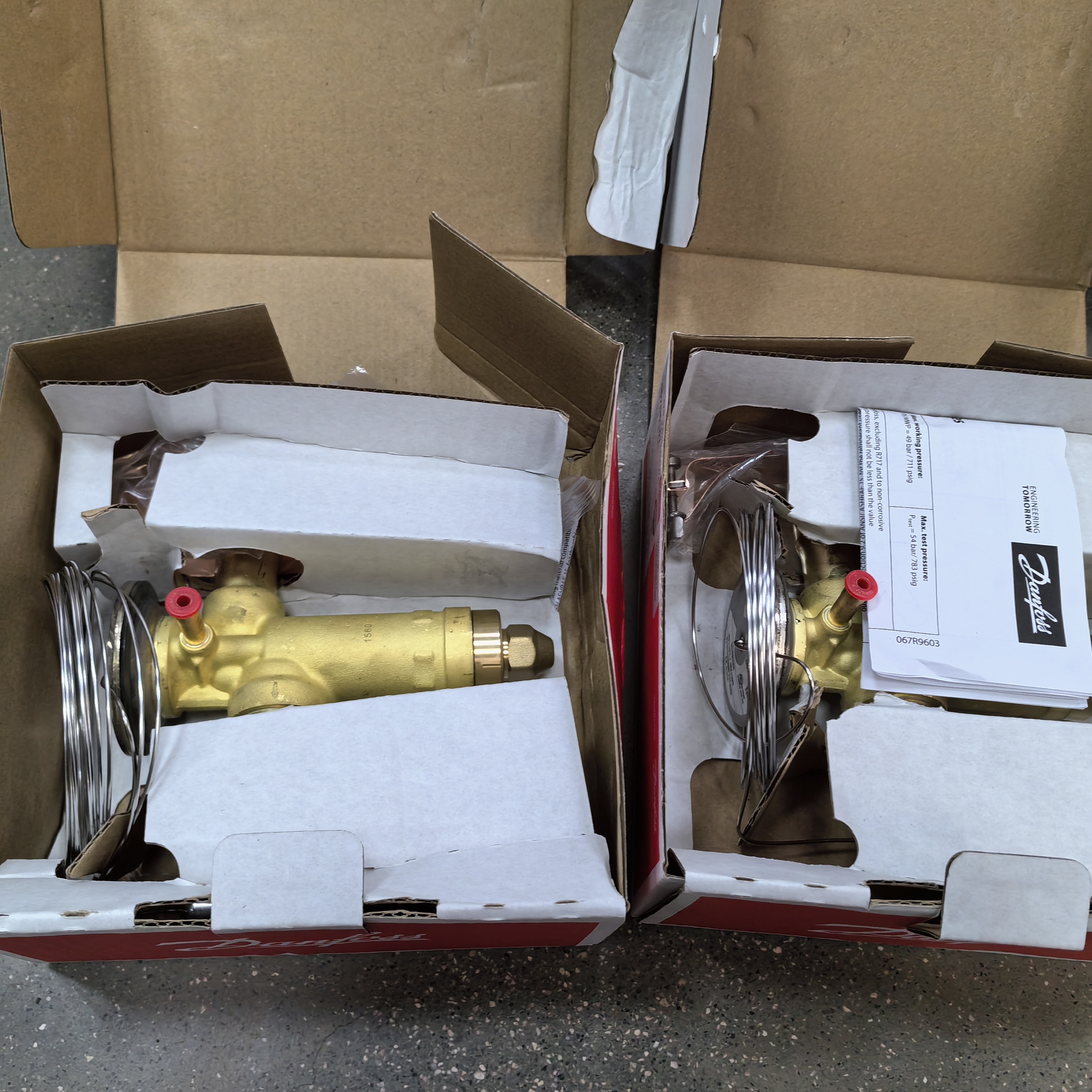

Product Legend
We all ship genuine products, and the accessories are specifically
designed to match the interface of the air cooler

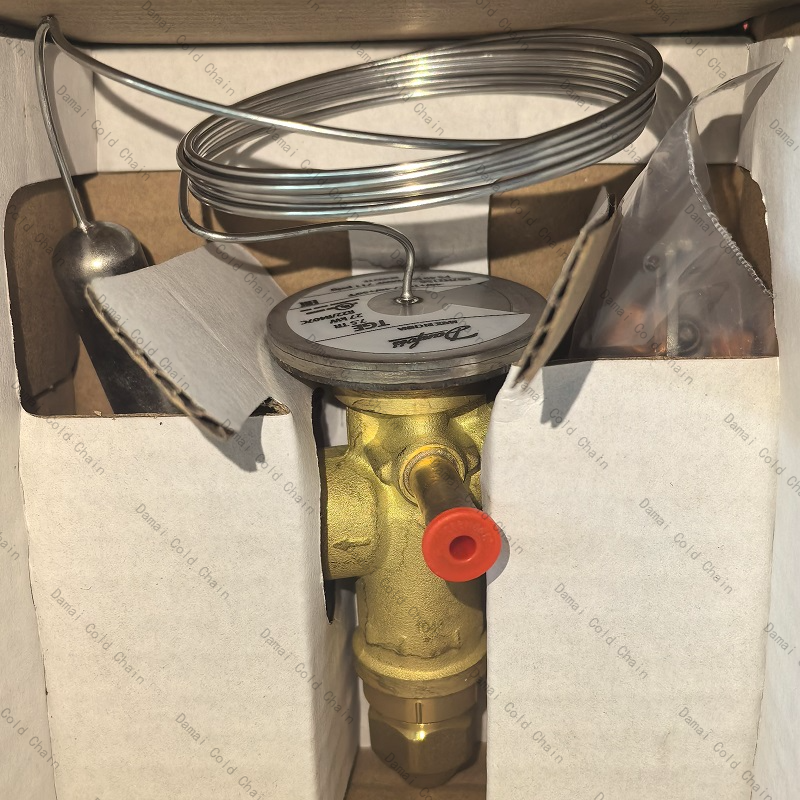

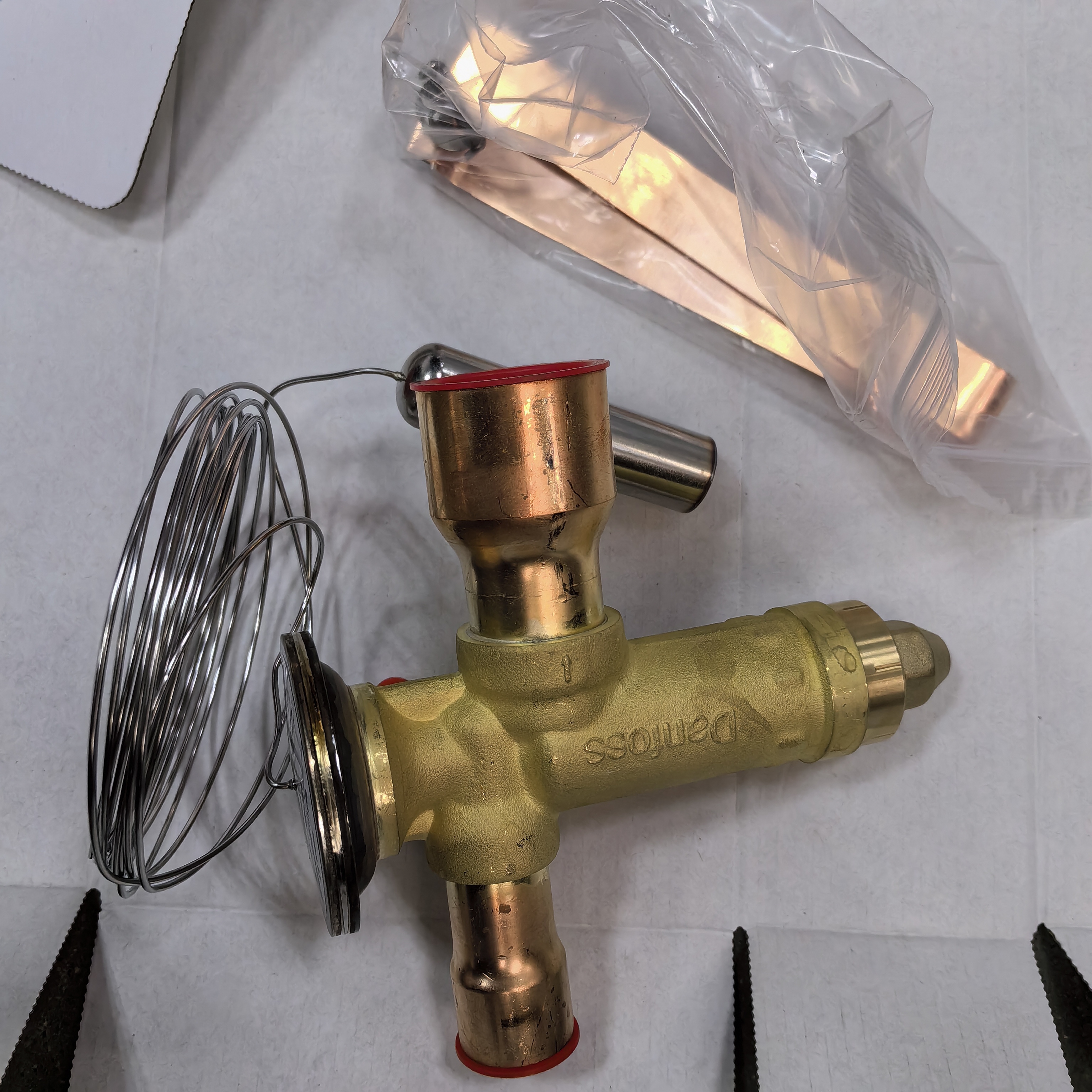

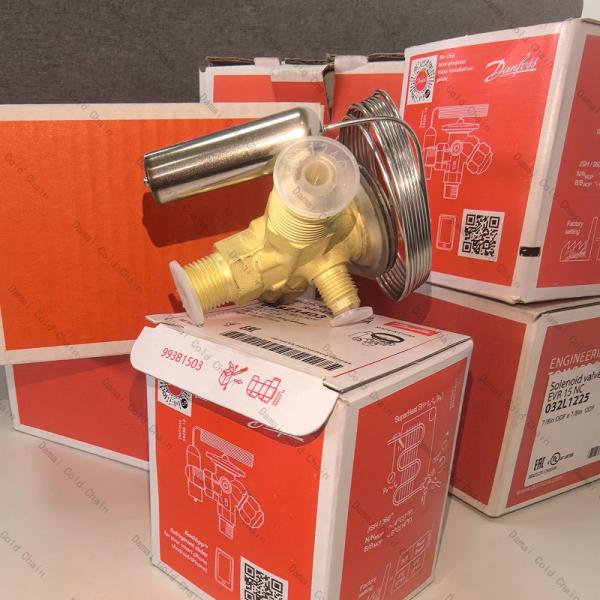

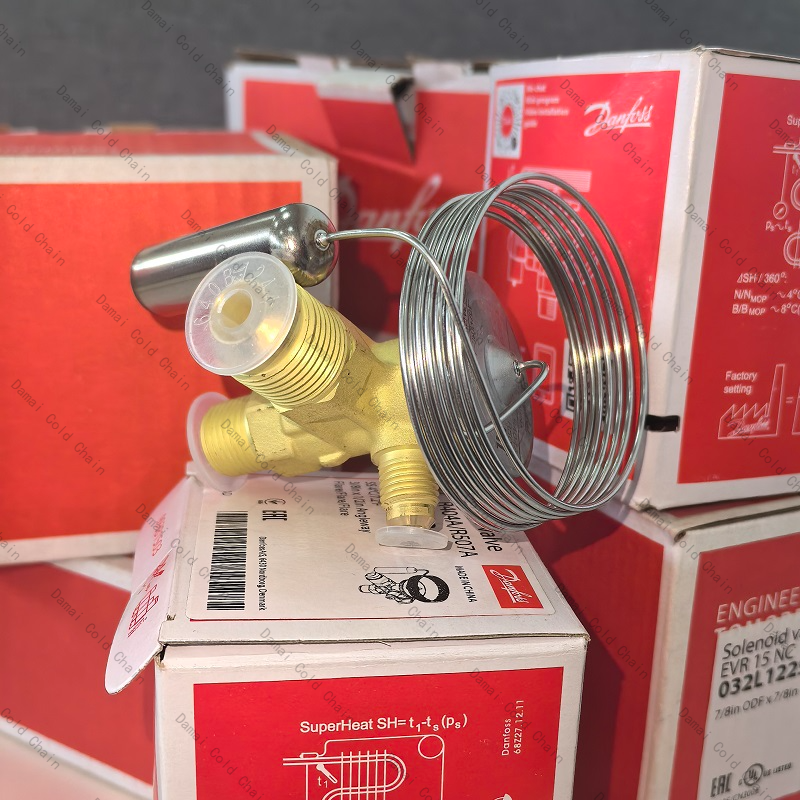

Thermostatic expansion valve regulates the flow of liquid
refrigerant entering the evaporator. The flow is controlled by a
thermal ball valve attached to the evaporator outlet suction pipe.
Thermostatic ball sensing evaporator heating and regulating valve
Enhanced adaptability to changes in refrigerant dosage; Enhanced
comfort and short defrosting time;
Advantage
RFQ
Q: Are you a factory or a foreign trade company?
A: Yes, we are a manufacturer and we have our own factory.
Q: How long is your warranty?
A: Well, obviously, with a year's worth of ring quality, the two
brothers enjoy more than ten fortunes.
Q. Question: How should an essay be written?
A: 30% of the total amount will be paid before production, and the
remaining amount will be paid before delivery.
Q: What is transportation like?
A: We will compare prices from three different sources to find the
safest and quickest way to safely deliver to you, and our shipment
is also very convenient because we are located next to a large
port. Ningbo/Shanghai is the nearest port to us.
Q: What is a specific date?
A: 25-30 days, discard.
Q: How is the information situation?
A: All products have passed testing before taking effect and can be
used with confidence.
