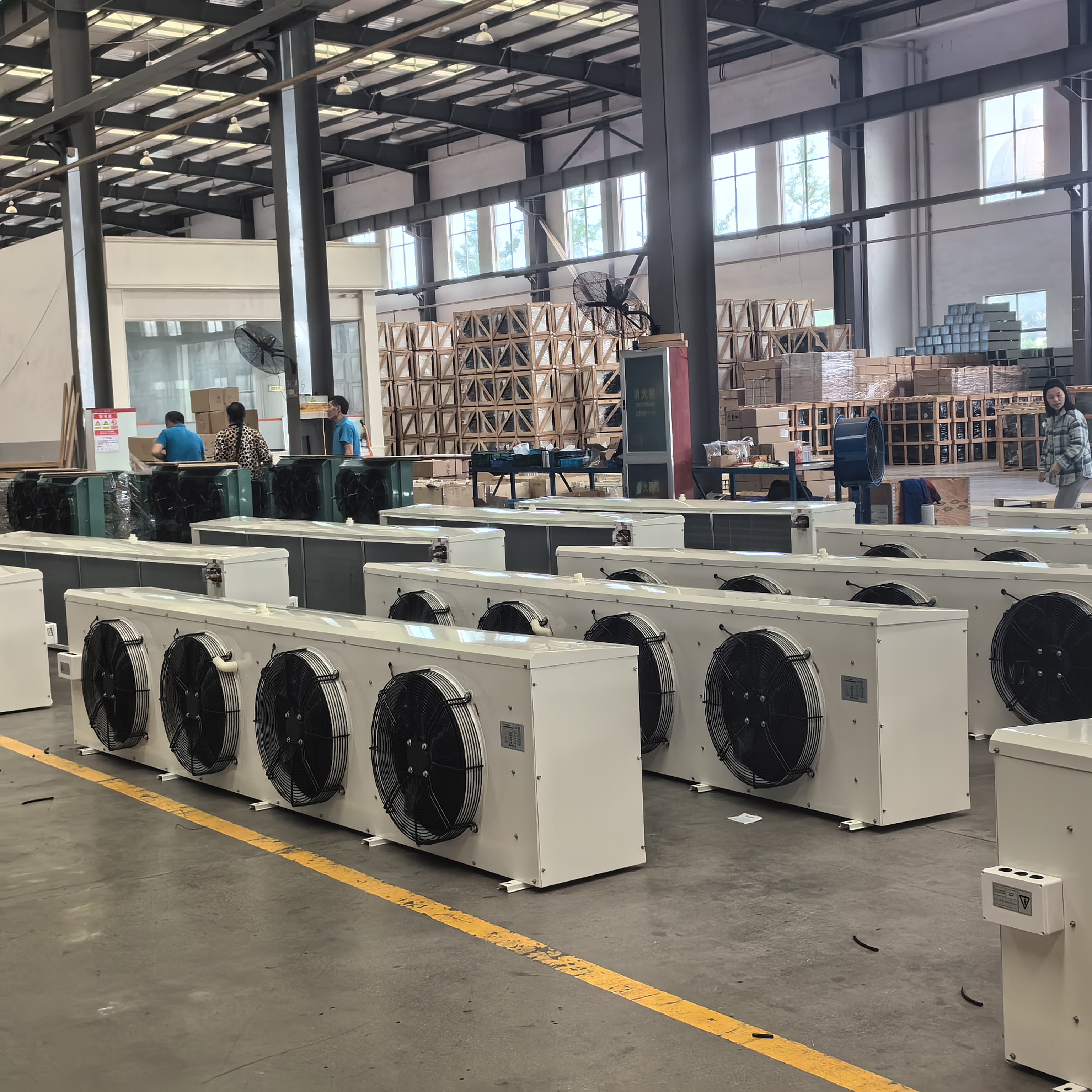

Industrial Cold Room Evaporator for High Performance Cooling
Solutions
Product Description:
Our company offers a variety of cold storage solutions to meet your
needs, including freezer rooms, blast freezers, meat, fruit and
vegetable storage, seafood storage, display cold rooms, chiller
rooms, and logistics cold storage.
Customizable Cold Storage
We understand that every business has different requirements.
That's why our cold storage can be customized to meet your specific
needs.
Freezer Room PU Panel with Cam-lock
Our freezer rooms are constructed using PU panels with cam-lock.
The material selection includes color steel plate, stainless steel
plate, nano anticorrosive plate, or specific materials. We can
customize the thickness and color as per customer requirements. Our
freezer rooms have high pressure strength, flexible combination,
and easy installation.
Condensing Unit
We offer a variety of options for our condensing unit:
- Compressor Optional: 1-Hermetic Scroll; 2-Semi-hermetic or Screw
- Condenser: Air cooled or Water cooled
- Frame: can be stell shell with spray painting or open type on stell
frame
- Refrigerant: R404a/R410a
- Capacity: Single compressor 2HP-50HP
Features:
Scientific structure, high efficiency, even frost distribution,
power and running cost savings are all key features of our product.
Our product is designed to work hand-in-hand with axial fan quiet
models that offer strong long-range air flow and have the added
benefit of being power-saving and having a long lifespan.
The expansion processing of our product ensures a perfect tightness
between the pipe and fin. Additionally, it is matched with
stainless electric heaters that have high insulating properties,
allowing for efficient defrosting in a short amount of time.
Our heat exchanging coil is tested for gas tightness up to 2.6MPa
air pressure, ensuring the highest level of safety and reliability.
The product is made from aluminum and painted stan boards, making
it versatile and able to meet the different demands of a variety of
applications.
Our product finds its application in many industries including, but
not limited to, refrigeration, HVAC, and chemical processing.
Technical Parameters:
| Model | Nominal cooling capacity | Cooling area | Pitch of fins | Fan | Deforost electrothemal tube |
| Number | Diameter | Air volume | Wide pressure | Range | Fan power | Moter voltage | Coil(kw) | Water pond(kw) | Voltage(V) |
| DD-1.4/7 | 1400(1200) | 7 | 6.0 | 1 | ∅300 | 1700 | 98(10) | 8 | 90 | 380 | 0.9 | 0.4 | 220 |
| DD-2.35/12 | 2350(2000) | 12 | 6.0 | 2 | ∅300 | 2×1700 | 98(10) | 8 | 2×90 | 380 | 1.2 | 0.4 | 220 |
| DD-3.0/15 | 3000(2600) | 15 | 6.0 | 2 | ∅300 | 2×1700 | 98(10) | 8 | 2×90 | 380 | 1.35 | 0.45 | 220 |
| DD-4.0/22 | 4000(3450) | 21.5 | 6.0 | 3 | ∅300 | 3×1700 | 98(10) | 8 | 3×90 | 380 | 1.8 | 0.6 | 220 |
| DD-6.0/30 | 6000(5150) | 30 | 6.0 | 2 | ∅400 | 2×3000 | 118(120) | 12 | 2×216 | 380 | 2.6 | 1.3 | 220 |
| DD-8.0/40 | 8000(6900) | 40 | 6.0 | 2 | ∅400 | 2×3000 | 118(120) | 12 | 2×216 | 380 | 2.8 | 1.4 | 220 |
| DD-12.0/60 | 12000(10300) | 60 | 6.0 | 2 | ∅500 | 2×6000 | 167(17) | 15 | 2×550 | 380 | 6.0 | 1.5 | 220 |
| DD-15.9/80 | 15900(13700) | 80 | 6.0 | 2 | ∅500 | 2×6000 | 167(17) | 15 | 2×550 | 380 | 7.5 | 1.5 | 220 |
| DD-20.0/100 | 20000(17200) | 100 | 6.0 | 3 | ∅500 | 3×6000 | 167(17) | 15 | 3×550 | 380 | 9.5 | 1.9 | 220 |
| DD-24.0/120 | 24000(20650) | 120 | 6.0 | 3 | ∅500 | 3×6000 | 167(17) | 15 | 3×550 | 380 | 11.0 | 2.2 | 220 |
| DD-28.0/140 | 28000(24100) | 140 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 12 | 2.4 | 220 |
| DD-32.1/160 | 32100(27600) | 160 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 12.5 | 2.5 | 220 |
| DD-37.4/200A | 37400(32200) | 200 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 13.5 | 2.7 | 220 |
| DD-37.4/200B | 37400(32200) | 201 | 6.0 | 2 | ∅600 | 2×10000 | 200 | 18 | 2×1100 | 380 | 15.2 | 1.9 | 220 |
| DD-46.8/250 | 46800(40300) | 256 | 6.0 | 3 | ∅600 | 3×10000 | 200 | 18 | 3×1100 | 380 | 17.6 | 2.2 | 220 |
| DD-56.2/310 | 56200(48300) | 307 | 6.0 | 3 | ∅600 | 3×10000 | 200 | 18 | 3×1100 | 380 | 20 | 2.5 | 220 |
| DD-67.0/372 | 67000(57620) | 372 | 6.0 | 3 | ∅600 | 3×12000 | 240 | 20 | 3×1500 | 380 | 23 | 2×2.3 | 220 |
| DD-81.5/450 | 81500(70090) | 450 | 6.0 | 3 | ∅700 | 3×15000 | 290 | 25 | 3×2200 | 380 | 2703 | 2×2.1 | 220 |
| DD-99.6/530 | 99600(85650) | 525 | 6.0 | 3 | ∅700 | 3×15000 | 290 | 25 | 3×2200 | 380 | 31.2 | 2×2.4 | 220 |
Temperature ranges for various applications
Nature-based Applications
Nature can be utilized to help with various tasks, especially with
temperature control. For example:
- Fruit ripening: suitable for temperatures above 25C
Processing Room
When processing products, it's important to maintain consistent
temperatures in the designated rooms. Generally, the temperature
range for a processing room should stay between 12~19C.
Food Storage
Properly storing food products is crucial for maintaining their
overall quality and safety. Below are the recommended temperature
ranges for different types of food products:
- Fruit, vegetable, dry food: -5~+10C
- Medicine, cake, pastry, chemical material: 0C~-5C
- Ice storage room: -5~-10C
- Fish, meat storage: -18~-25C
- Deep freezer, low temperature storage, quick-freeze, blast freezer:
-25C~-40C
Customization:
Our product, the DM Cold Room Evaporator, offers customizable
options to fit your specific needs. As an evaporator in
refrigeration systems, this product is designed to provide
efficient cooling in your cold room. With a cooling type of counter
flow, this evaporator has a capacity of 4.9KW and an evaporating
area ranging from 7-180 square meters, along with a capacity of
2.4KW and a long operating cycle.
Our brand, DM, is known for producing high-quality refrigeration
equipment. The model number for this product is DM-0006, and it is
manufactured in China. It is also certified with CE and ISO,
ensuring its reliability and safety. The minimum order quantity for
this product is 1, with a price range of 1000-100000 dollars. We
offer customization for the packaging details and delivery time,
with a standard delivery time of 20 days. Payment terms include TT
and L/C, and we have a supply ability of 300,000 units per year.
Choose our Evaporation Air Cooler for your cold room needs, and
take advantage of our customizable options to fit your specific
requirements.
Support and Services:
The Cold Room Evaporator product technical support and services
include:
- Installation assistance
- Troubleshooting and problem-solving
- Maintenance and repair services
- Warranty support and claims
- Technical documentation and resources
- Training and education for proper use and care of the product
Packing and Shipping:
Product Packaging:
- The cold room evaporator will be securely packed in a sturdy
cardboard box.
- The product will be wrapped in protective materials to prevent any
damage during transit.
- The package will also include an instruction manual and any
necessary mounting hardware.
Shipping:
- The product will be shipped via a reputable courier service.
- Shipping costs will be calculated based on the delivery address and
added to the total purchase price.
- Customers will receive a tracking number once the product has been
shipped.
- Delivery times may vary depending on the destination, but we will
do our best to ensure prompt delivery.
FAQ:
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: Does this product come with any certifications?
A: Yes, this product is CE and ISO certified.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: Can the packaging details of this product be customized?
A: Yes, the packaging details of this product can be customized.
Q: How long does it take to deliver this product?
A: The delivery time for this product is 20 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are TT and L/C.
