Customizable Cold Room Evaporator For Commercial Refrigeration
Applications Air Cooler
Product Description:
Our unit coolers/evaporators can be widely used in various kinds of
preserved and refrigeration cold-rooms, food processing workshops
and distribution centers. Our compact and reliable design can help
customers optimise the space. When match with low noise axial fan,
you can rapidly reduce noise level of working space and highly
increase comfortable level.
Refrigeration capacity of this series covers from 1.2KW to 114KW,
fitting with different refrigerant such as
R134a·R404A·R507A·R407C·R22.
Features:
Scientific structure, high efficient, frost evenly, save power and
bw running cost;
Match with axial fan quiet models that offer strong air flow in
long shot rang;power saving, long life cycle;
Lead to perfect tightness between pipe and fin after expansion
processing;
Match with stainless electric heater in high insulating property,
defrost efficiently in shot time;
The heat exchanging coil pass gas tightness test up to 2.6MPa air
pressure;
Aluminum and painted stan board, to meet your different demands.
Sphere of application
High temperature type:
(cold room temperature 12~- 2ºC)fin space:4.5mm;
Medium temperature type:
(cold room temperature-2 ~- 10ºC) fin space:6.0mm;
Low temperature type:
(cold room temperature - 10~-31ºC)fn space:9.0mm;
→Tailor-made for customers
Technical Parameters:
The appropriate temperature range for various applications are:
- Nature usage is suitable for:
- Fruit ripening which requires a temperature of over 25C.
- Processing room requires a temperature range of 12~19C.
- Fruit, vegetable, and dry food storage requires a temperature range
of -5~+10C.
- Medicine, cake, pastry, and chemical material storage are required
to be stored in temperatures ranging from 0C~-5C.
- Ice storage rooms need to be kept at temperatures between -5~-10C.
- Fish and meat storage requires a temperature range of -18~-25C.
- For deep freezer, low temperature storage, quick-freeze, and blast
freezer, the recommended temperature range is -25C~-40C.
| Model | Nominal cooling capacity | Cooling area | Pitch of fins | Fan | Deforost electrothemal tube |
| Number | Diameter | Air volume | Wide pressure | Range | Fan power | Moter voltage | Coil(kw) | Water pond(kw) | Voltage(V) |
| DD-1.4/7 | 1400(1200) | 7 | 6.0 | 1 | ∅300 | 1700 | 98(10) | 8 | 90 | 380 | 0.9 | 0.4 | 220 |
| DD-2.35/12 | 2350(2000) | 12 | 6.0 | 2 | ∅300 | 2×1700 | 98(10) | 8 | 2×90 | 380 | 1.2 | 0.4 | 220 |
| DD-3.0/15 | 3000(2600) | 15 | 6.0 | 2 | ∅300 | 2×1700 | 98(10) | 8 | 2×90 | 380 | 1.35 | 0.45 | 220 |
| DD-4.0/22 | 4000(3450) | 21.5 | 6.0 | 3 | ∅300 | 3×1700 | 98(10) | 8 | 3×90 | 380 | 1.8 | 0.6 | 220 |
| DD-6.0/30 | 6000(5150) | 30 | 6.0 | 2 | ∅400 | 2×3000 | 118(120) | 12 | 2×216 | 380 | 2.6 | 1.3 | 220 |
| DD-8.0/40 | 8000(6900) | 40 | 6.0 | 2 | ∅400 | 2×3000 | 118(120) | 12 | 2×216 | 380 | 2.8 | 1.4 | 220 |
| DD-12.0/60 | 12000(10300) | 60 | 6.0 | 2 | ∅500 | 2×6000 | 167(17) | 15 | 2×550 | 380 | 6.0 | 1.5 | 220 |
| DD-15.9/80 | 15900(13700) | 80 | 6.0 | 2 | ∅500 | 2×6000 | 167(17) | 15 | 2×550 | 380 | 7.5 | 1.5 | 220 |
| DD-20.0/100 | 20000(17200) | 100 | 6.0 | 3 | ∅500 | 3×6000 | 167(17) | 15 | 3×550 | 380 | 9.5 | 1.9 | 220 |
| DD-24.0/120 | 24000(20650) | 120 | 6.0 | 3 | ∅500 | 3×6000 | 167(17) | 15 | 3×550 | 380 | 11.0 | 2.2 | 220 |
| DD-28.0/140 | 28000(24100) | 140 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 12 | 2.4 | 220 |
| DD-32.1/160 | 32100(27600) | 160 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 12.5 | 2.5 | 220 |
| DD-37.4/200A | 37400(32200) | 200 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 13.5 | 2.7 | 220 |
| DD-37.4/200B | 37400(32200) | 201 | 6.0 | 2 | ∅600 | 2×10000 | 200 | 18 | 2×1100 | 380 | 15.2 | 1.9 | 220 |
| DD-46.8/250 | 46800(40300) | 256 | 6.0 | 3 | ∅600 | 3×10000 | 200 | 18 | 3×1100 | 380 | 17.6 | 2.2 | 220 |
| DD-56.2/310 | 56200(48300) | 307 | 6.0 | 3 | ∅600 | 3×10000 | 200 | 18 | 3×1100 | 380 | 20 | 2.5 | 220 |
| DD-67.0/372 | 67000(57620) | 372 | 6.0 | 3 | ∅600 | 3×12000 | 240 | 20 | 3×1500 | 380 | 23 | 2×2.3 | 220 |
| DD-81.5/450 | 81500(70090) | 450 | 6.0 | 3 | ∅700 | 3×15000 | 290 | 25 | 3×2200 | 380 | 2703 | 2×2.1 | 220 |
| DD-99.6/530 | 99600(85650) | 525 | 6.0 | 3 | ∅700 | 3×15000 | 290 | 25 | 3×2200 | 380 | 31.2 | 2×2.4 | 220 |
Applications:
There are numerous types of cold storage facilities that serve
various needs. The freezer room is one such facility that is designed to freeze products and
maintain them at a specific low temperature.
Another type of cold storage is the blast freezer , which is used to rapidly freeze products while maintaining their
quality. This facility uses high-powered fans and temperature
control systems to lower the temperature of products quickly,
minimizing the chances of bacterial growth.
For meat products, a specialized facility known as the meat cold is used to store and preserve meat. Similarly, a fruit and vegetable storage room is used to keep these types of produce fresh.
Seafood storage is a specialized cold storage facility that is used to store and
preserve seafood, ensuring that it remains fresh for an extended
period.
The display cold room is designed to showcase products to customers while maintaining
their freshness.
A chiller room is another type of cold storage facility that is used to keep
products cool. Finally, there is the logistics cold storage facility, which is used for storage and transportation of products
from one place to another.
Support and Services:
The Cold Room Evaporator product comes with comprehensive technical
support and services to ensure optimum performance and longevity.
Our team of experienced technicians is available to provide
assistance with installation, maintenance, and troubleshooting. We
also offer training programs for proper operation and maintenance
of the equipment. In addition, we provide spare parts and
accessories to ensure seamless operation and minimal downtime. Our
commitment to quality and customer satisfaction is reflected in our
after-sales support, which includes prompt response to service
requests and efficient resolution of issues.

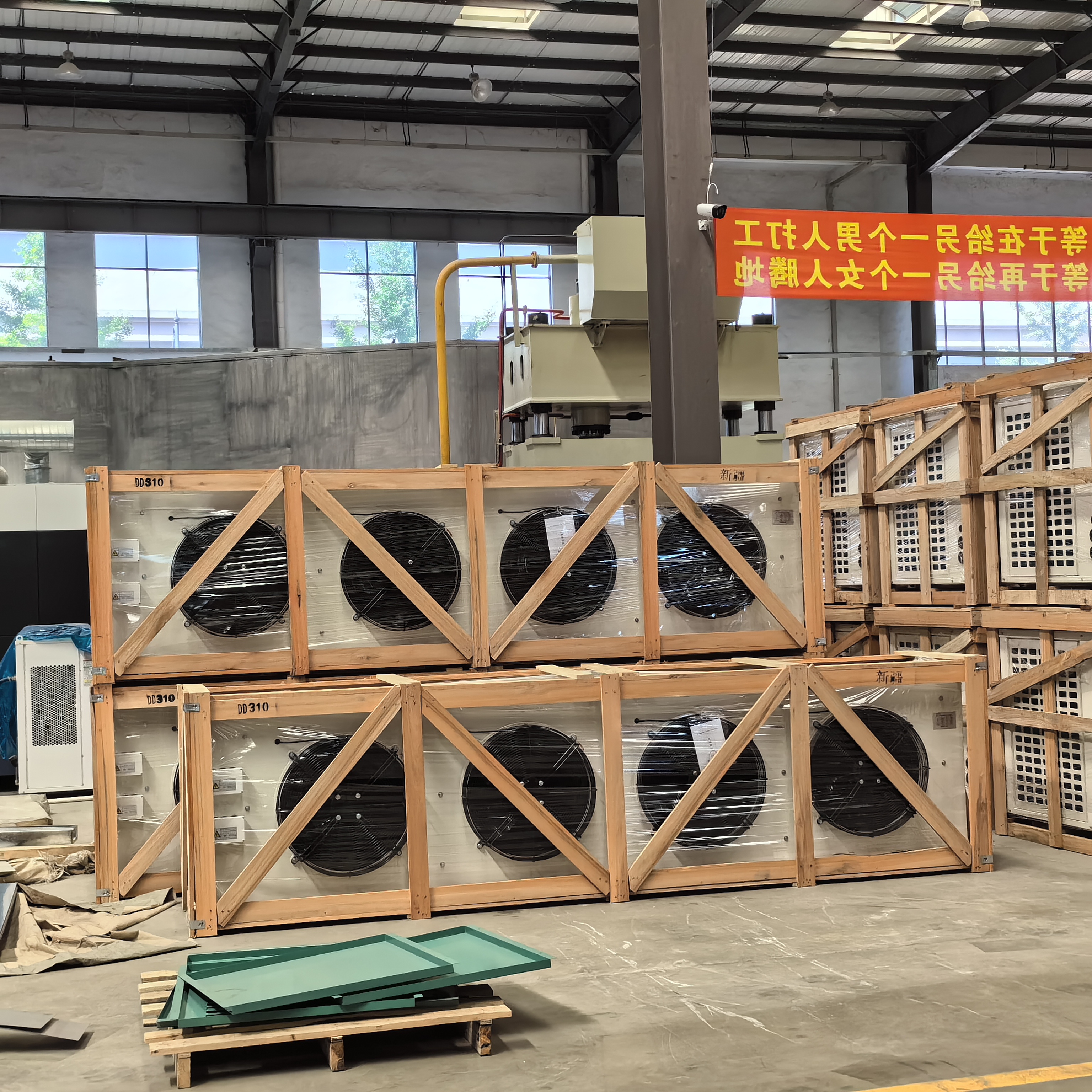

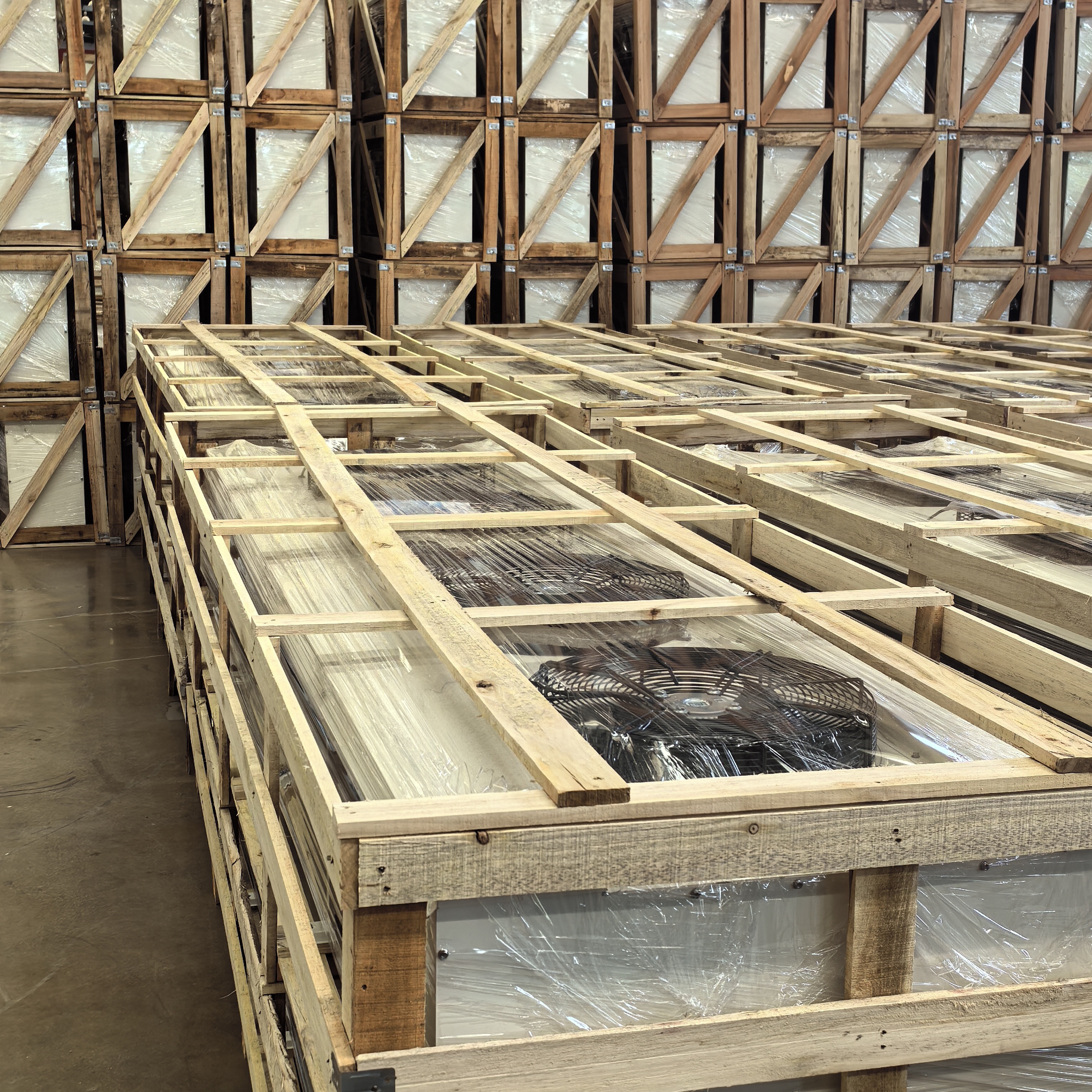

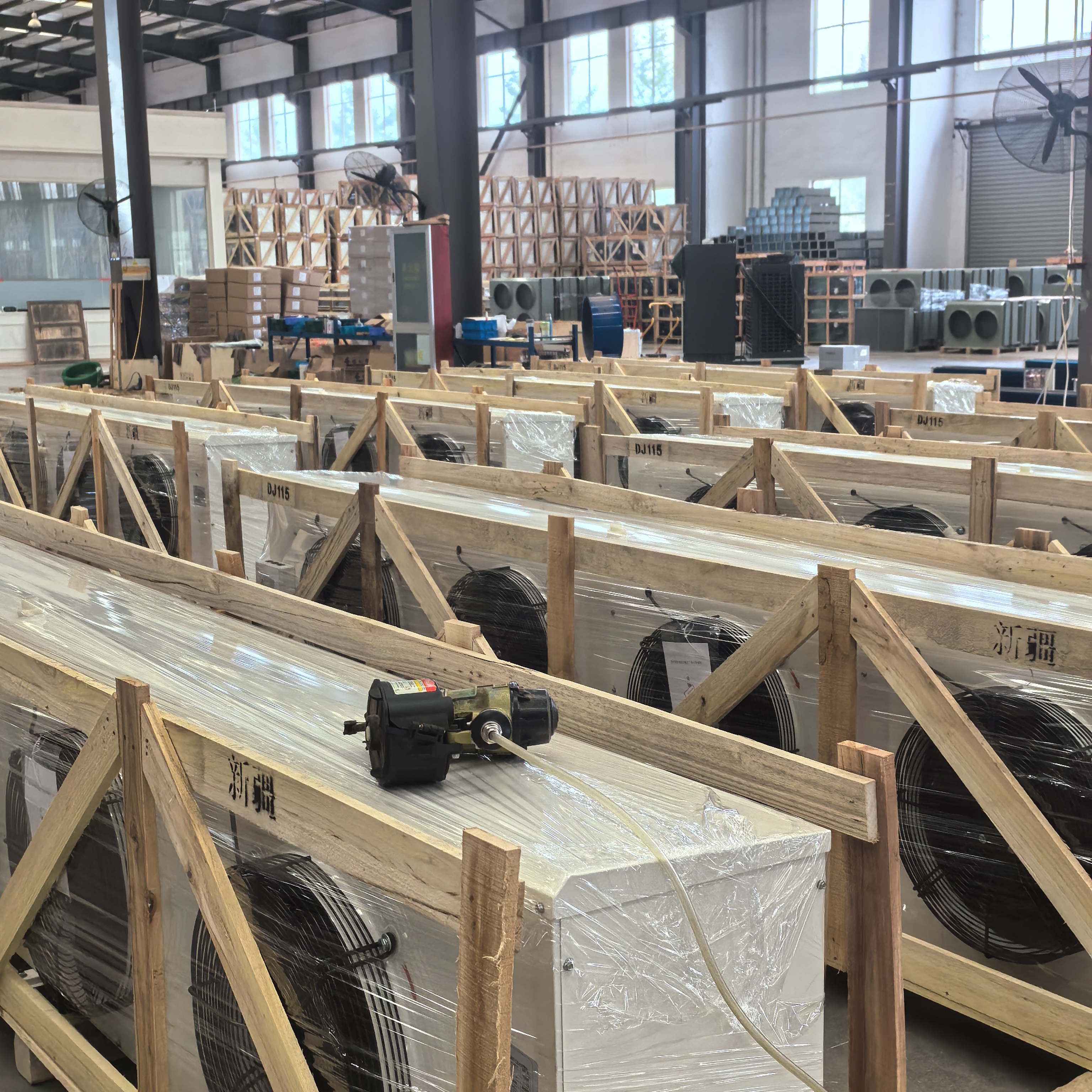

Packing and Shipping:
Product Packaging:
- The Cold Room Evaporator will be securely packed in a sturdy
cardboard box.
- Foam inserts will be used to protect the product during shipping.
- All necessary installation hardware and instructions will be
included.
Shipping:
- We offer free standard shipping within the continental United
States.
- Orders will be processed within 1-2 business days.
- Shipping time is typically 3-5 business days.
- Expedited shipping options are available for an additional fee.
FAQ:
Q: Where is this Cold Room Evaporator made?
A: This Cold Room Evaporator is made in China.
Q: What certifications does this Cold Room Evaporator have?
A: This Cold Room Evaporator has CE and ISO certifications.
Q: What is the minimum order quantity for this Cold Room Evaporator?
A: The minimum order quantity for this Cold Room Evaporator is 1.
Q: What is the price range for this Cold Room Evaporator?
A: The price range for this Cold Room Evaporator is between 1000 to
100000.
Q: What are the packaging details for this Cold Room Evaporator?
A: The packaging details for this Cold Room Evaporator can be
customized according to your needs.
Q: What is the delivery time for this Cold Room Evaporator?
A: The delivery time for this Cold Room Evaporator is 20 days.
Q: What are the payment terms for this Cold Room Evaporator?
A: The payment terms for this Cold Room Evaporator are TT and L/C.
