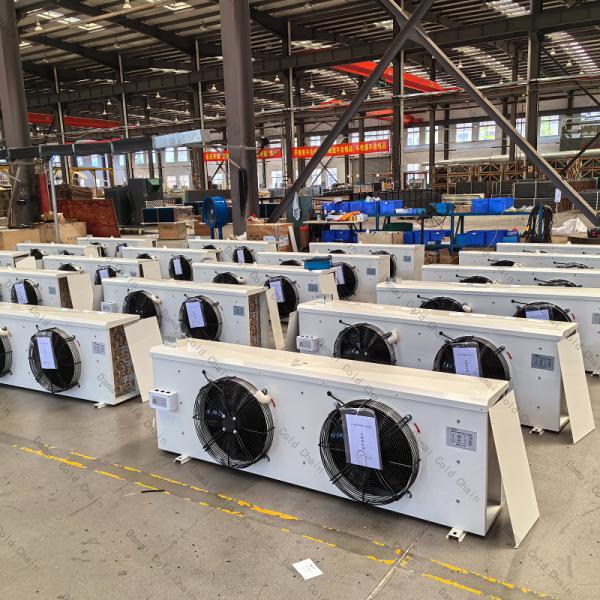

Customizable Cold Room Evaporator for Your Commercial Refrigeration
NeedsProduct Description:
The refrigeration capacity of this series range from 1.2KW to
114KW, and they are compatible with a variety of refrigerants,
including R134a, R404A, R507A, R407C, and R22.
This series offers a diverse range of cooling capacity options to
choose from, ensuring that you can find one that best suits your
specific needs.
Additionally, the ability to utilize different refrigerants
provides increased flexibility and compatibility with various
cooling applications.
With this level of adaptability to different refrigerants, this
series is a great solution for a variety of industries and settings
that require reliable and efficient cooling performance.
Features:
The product has been designed with several important
characteristics to make it a highly efficient and effective option
for your needs.
- Scientific Structure: The product has a scientific structure that has been designed to
ensure optimum performance.
- Highly Efficient: The product is highly efficient and will ensure that it functions
optimally at all times.
- Frost Evenly: The product has been designed to ensure that frost is evenly
spread across the surface, making it highly effective.
- Power Saving: The product is designed to save power, ensuring that it offers
long-term running cost benefits.
The product also boasts several other important features including:
- Axial Fan: Equipped with a quiet axial fan, this product offers strong air
flow in a long shot range. This aids in power saving, as well as
ensuring that the product has a long life cycle.
- Expansion Processing: The product has undergone expansion processing making it an ideal
option for ensuring a perfect tightness between the pipe and fin.
- Stainless Electric Heater: This product is also matched with a stainless electric heater that
has a high insulating property, making it one of the best
defrosting options on the market.
- Gas Tightness Test: The heat exchanging coil has passed a gas tightness test of up to
2.6MPa air pressure ensuring that it is a highly durable and
effective option for your needs.
- Aluminum and Painted Stan Board: The product is made using aluminum and painted stand board, this
ensures that it is versatile enough to meet your different demands.
Technical Parameters:
How to Choose the Right Unit Cooler Model According to Selected
Compressor Rating Condition Refrigerating Capacity
The selection of the appropriate unit cooler model is critical to
ensure efficient refrigeration of the cold room. The following
guidelines should be followed:
- When the cold room temperature is around 0ºC, choose the unit
cooler as Q.×1.0
- If the cold room temperature is around -18ºC, select the unit
cooler as Q.×1.1
- When the cold room temperature is lower than -25ºC, the unit cooler
should be selected as Q.×1.27
It is important that these guidelines are followed to ensure
optimal refrigeration performance. If you are using R134a as
refrigerant, it is advisable to increase the refrigerant capacity
(Q) by 10% to 15% when selecting the unit cooler.
| Model | Nominal cooling capacity | Cooling area | Pitch of fins | Fan | Deforost electrothemal tube |
| Number | Diameter | Air volume | Wide pressure | Range | Fan power | Moter voltage | Coil(kw) | Water pond(kw) | Voltage(V) |
| DD-1.4/7 | 1400(1200) | 7 | 6.0 | 1 | ∅300 | 1700 | 98(10) | 8 | 90 | 380 | 0.9 | 0.4 | 220 |
| DD-2.35/12 | 2350(2000) | 12 | 6.0 | 2 | ∅300 | 2×1700 | 98(10) | 8 | 2×90 | 380 | 1.2 | 0.4 | 220 |
| DD-3.0/15 | 3000(2600) | 15 | 6.0 | 2 | ∅300 | 2×1700 | 98(10) | 8 | 2×90 | 380 | 1.35 | 0.45 | 220 |
| DD-4.0/22 | 4000(3450) | 21.5 | 6.0 | 3 | ∅300 | 3×1700 | 98(10) | 8 | 3×90 | 380 | 1.8 | 0.6 | 220 |
| DD-6.0/30 | 6000(5150) | 30 | 6.0 | 2 | ∅400 | 2×3000 | 118(120) | 12 | 2×216 | 380 | 2.6 | 1.3 | 220 |
| DD-8.0/40 | 8000(6900) | 40 | 6.0 | 2 | ∅400 | 2×3000 | 118(120) | 12 | 2×216 | 380 | 2.8 | 1.4 | 220 |
| DD-12.0/60 | 12000(10300) | 60 | 6.0 | 2 | ∅500 | 2×6000 | 167(17) | 15 | 2×550 | 380 | 6.0 | 1.5 | 220 |
| DD-15.9/80 | 15900(13700) | 80 | 6.0 | 2 | ∅500 | 2×6000 | 167(17) | 15 | 2×550 | 380 | 7.5 | 1.5 | 220 |
| DD-20.0/100 | 20000(17200) | 100 | 6.0 | 3 | ∅500 | 3×6000 | 167(17) | 15 | 3×550 | 380 | 9.5 | 1.9 | 220 |
| DD-24.0/120 | 24000(20650) | 120 | 6.0 | 3 | ∅500 | 3×6000 | 167(17) | 15 | 3×550 | 380 | 11.0 | 2.2 | 220 |
| DD-28.0/140 | 28000(24100) | 140 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 12 | 2.4 | 220 |
| DD-32.1/160 | 32100(27600) | 160 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 12.5 | 2.5 | 220 |
| DD-37.4/200A | 37400(32200) | 200 | 6.0 | 4 | ∅500 | 4×6000 | 167(17) | 15 | 4×550 | 380 | 13.5 | 2.7 | 220 |
| DD-37.4/200B | 37400(32200) | 201 | 6.0 | 2 | ∅600 | 2×10000 | 200 | 18 | 2×1100 | 380 | 15.2 | 1.9 | 220 |
| DD-46.8/250 | 46800(40300) | 256 | 6.0 | 3 | ∅600 | 3×10000 | 200 | 18 | 3×1100 | 380 | 17.6 | 2.2 | 220 |
| DD-56.2/310 | 56200(48300) | 307 | 6.0 | 3 | ∅600 | 3×10000 | 200 | 18 | 3×1100 | 380 | 20 | 2.5 | 220 |
| DD-67.0/372 | 67000(57620) | 372 | 6.0 | 3 | ∅600 | 3×12000 | 240 | 20 | 3×1500 | 380 | 23 | 2×2.3 | 220 |
| DD-81.5/450 | 81500(70090) | 450 | 6.0 | 3 | ∅700 | 3×15000 | 290 | 25 | 3×2200 | 380 | 2703 | 2×2.1 | 220 |
| DD-99.6/530 | 99600(85650) | 525 | 6.0 | 3 | ∅700 | 3×15000 | 290 | 25 | 3×2200 | 380 | 31.2 | 2×2.4 | 220 |
Applications:
The units are commonly utilized in a variety of facilities
including large cold storage facilities, supermarkets, workshops
requiring refrigeration, hotel cold storage spaces, and support
unit condensers.
These units are perfect for maintaining cool temperatures in large
spaces and can be used in conjunction with a variety of cooling
systems.
They are especially useful in commercial settings where large
amounts of temperature-sensitive products need to be kept chilled
for extended periods of time.
With their versatility and durability, these refrigeration units
are an essential component for any business in need of reliable
cooling equipment.
This product is also known as Air Cooled Evaporator or Commercial
Evaporative Air Cooler.
Support and Services:
Our Cold Room Evaporator product comes with comprehensive technical
support and services to ensure optimal performance and longevity.
Our team of experts is always available to provide assistance with
installation, maintenance, and troubleshooting. We also offer
regular maintenance services to keep your cold room evaporator
running smoothly and to prevent any potential issues. In addition,
we provide training and educational resources to help you better
understand and utilize your cold room evaporator. With our
technical support and services, you can trust that your cold room
evaporator will operate at optimal efficiency and reliability.
Packing and Shipping:
- The cold room evaporator is carefully packaged in a sturdy
cardboard box.
- The product is further protected by foam inserts to prevent any
damage during shipping.
- The package also includes installation instructions and necessary
hardware.
- The cold room evaporator will be shipped via a trusted courier
service.
- Shipping is available to most locations worldwide.
- The estimated delivery time will vary depending on the destination,
but typically ranges from 3-7 business days.
- A tracking number will be provided once the product has shipped.
FAQ:
Q5: What is the minimum order quantity for this Cold Room
Evaporator and what is the price range?
A5: The minimum order quantity for this product is 1 and the price
range is between $1000 and $100000. The exact price will depend on
the specific customization options required.
Q6: What are the packaging details for this Cold Room Evaporator?
A6: The packaging details for this product are customizable
according to your specific requirements.
Q7: What is the delivery time for this Cold Room Evaporator?
A7: The delivery time for this product is 20 days.
Q8: What are the payment terms for this Cold Room Evaporator?
A8: The payment terms for this product are TT and L/C.
