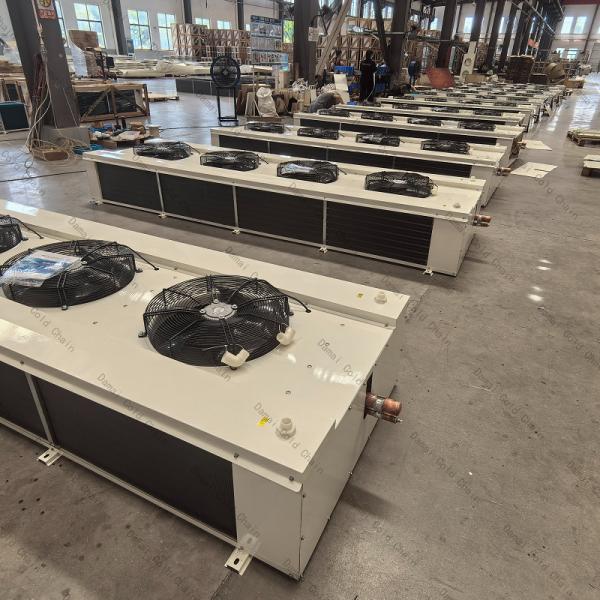

Upgrade Your Cooling System With Our Customizable Cold Room
Evaporator
Product Description:
Characteristics
Scientific structure, high efficient, frost evenly, save power and
bw running cost;
Match with axial fan quiet models that offer strong air flow in
long shot rang;power saving, long life cycle;
Lead to perfect tightness between pipe and fin after expansion
processing;
Match with stainless electric heater in high insulating property,
defrost efficiently in shot time;
The heat exchanging coil pass gas tightness test up to 2.6MPa air
pressure;
Aluminum and painted stan board, to meet your different demands.
Features:
Scientific Structure for Efficient and Cost-Effective Frosting
Our product is designed with a scientific structure that guarantees
high efficiency and even frost distribution. By doing so, we help
our customers save on running costs and power consumption.
Axial Fan Quiet Models for Strong Airflow
In addition, our product is paired with axial fan quiet models that
provide a strong gust of air flow over a long range. Not only do
these fans save on power consumption, but they are also crafted
with a long life cycle.
Perfect Tightness for Better Performance
When it comes to pipe and fin compatibility, we have you covered.
Our expansion processing technique leads to a tight and perfect
seal between the two, ensuring that our product always functions at
its best.
Efficient Defrosting for Optimal Performance
Our product also pairs well with a stainless electric heater with
high insulating properties. Not only does this material help with
defrosting, but it does so quickly and efficiently.
Gastight Coil for Added Durability
Additionally, our heat exchanging coil passes a gastightness test
up to 2.6MPa air pressure, guaranteeing added durability and
longevity for our product.
Flexible Material for Versatile Application
Finally, our product is crafted using both aluminum and painted
stan board, making it a versatile choice to meet your various
demands. It's suitable for a wide range of applications and
environments.
Sphere of Application
Our product can be used in a variety of settings, such as
refrigeration and air conditioning units for commercial buildings,
schools, hospitals, data centers, and more.
| Model | Nominal cooling capacity | Cooling area(㎡) | Pitch of fins(㎜) | Fan | Water volume(T/h) | Water inlet tube diameter | Water outlet pipe diameter |
| Number | Diameter | Air volume | Wide pressure | Motor(W) | Voltage(V) |
| DLS-16.7/80 | 16700(14350) | 80 | 4.5 | 2 | ∅500 | 2×6000 | 167 | 2*550 | 380 | 2.1 | 1″ | 2″ |
| DLS-22.0/105 | 22000(18900) | 105 | 4.5 | 2 | ∅500 | 2×6000 | 167 | 2*550 | 380 | 2.8 | 1″ | 2″ |
| DLS-25.8/125 | 25800(22200) | 125 | 4.5 | 3 | ∅500 | 3×6000 | 167 | 3*550 | 380 | 3.5 | 1½″ | 3″ |
| DLS-33.6/160 | 33600(28900) | 160 | 4.5 | 3 | ∅500 | 3×6000 | 167 | 3*550 | 380 | 4.2 | 1½″ | 3″ |
| DLS-38.7/185 | 38700(33300) | 185 | 4.5 | 4 | ∅500 | 4×6000 | 167 | 4*550 | 380 | 4.9 | 1½″ | 3″ |
| DLS-44.0/210 | 44000(37850) | 210 | 4.5 | 4 | ∅500 | 4×6000 | 167 | 4*550 | 380 | 5.6 | 1½″ | 3″ |
| DLS-52.9/260A | 52900(45500) | 256 | 4.5 | 4 | ∅500 | 4×6000 | 167 | 4*550 | 380 | 7.0 | 1½″ | 3″ |
| DLS-52.9/260B | 52900(45500) | 258 | 4.5 | 2 | ∅600 | 2×10000 | 200 | 2*1100 | 380 | 7.0 | 1½″ | 3″ |
| DLS-67.2/330 | 67200(57800) | 326 | 4.5 | 3 | ∅600 | 3×10000 | 200 | 3*1100 | 380 | 8.75 | 2″ | 4″ |
| DLS-83.4/410 | 83400(71700) | 407 | 4.5 | 3 | ∅600 | 3×10000 | 200 | 3*1100 | 380 | 10.85 | 2″ | 4″ |
| DLS-101.7/500 | 101700(87460) | 496 | 4.5 | 3 | ∅600 | 3×12000 | 240 | 3*1500 | 380 | 13.1 | 2″ | 4″ |
| DLS-122.0/600 | 122000(104900) | 604 | 4.5 | 3 | ∅700 | 3×18000 | 290 | 3*2200 | 380 | 15.7 | 2″ | 4″ |
| DLS-142.3/700 | 142300(122370) | 700 | 4.5 | 3 | ∅700 | 3×18000 | 290 | 3*2200 | 380 | 18.5 | 2″ | 4″ |
Technical Parameters:
Temperature Range for Different Purposes
Nature can be beneficial in many aspects of our lives. One of the
ways in which we can utilize nature is by understanding the
suitable temperature range for different purposes. Below are the
different temperature ranges for various purposes.
Fruit Ripening
The temperature range for fruit ripening is above 25C. This means
that if you want to ripen fruits, the room or storage area should
be kept at a temperature above 25C.
Processing Room
The temperature range for a processing room is between 12-19C. This
means that if you are processing food, the temperature inside the
room should be kept between 12-19C.
Fruit, Vegetable, Dry Food
The temperature range for storing fruit, vegetables, and dry food
is between -5 to +10C. This means that if you want to store any of
these items, the temperature of the storage area should be in this
range.
Medicine, Cake, Pastry, Chemical Material
The temperature range for storing medicine, cake, pastry, and
chemical material is between 0C to -5C. This means that if you want
to store any of these items, the temperature of the storage area
should be kept between 0C to -5C.
Ice Storage Room
The temperature range for storing ice is between -5 to -10C. This
means that if you want to store ice, the temperature of the storage
area should be kept between -5 to -10C.
Fish, Meat Storage
The temperature range for storing fish and meat is between -18 to
-25C. This means that if you want to store fish or meat, the
storage area should be kept between -18 to -25C.
Deep Freezer, Low Temperature Storage, Quick-Freeze, Blast Freezer
The temperature range for deep freezer, low temperature storage,
quick-freeze, and blast freezer is between -25C to -40C. This means
if you need to store anything in these types of freezers, they
should be kept between -25C to -40C.
Support and Services:
The Cold Room Evaporator product technical support and services
include:
- Installation guidance and support
- Product training and orientation
- Maintenance and troubleshooting assistance
- Replacement parts and accessories
- Extended warranty options
- 24/7 customer service and technical support
Packing and Shipping:
Product Packaging for Cold Room Evaporator:
- The evaporator will be packed securely in an appropriate-sized box.
- The box will be labeled with the product name, description, and
quantity.
- The box will be sealed with strong packing tape to prevent any
damage during shipping.
Shipping Information for Cold Room Evaporator:
- The product will be shipped within 2 business days of order
confirmation.
- We use reliable and trusted shipping carriers to ensure your
product arrives safely and on time.
- You will receive a tracking number via email once your order has
shipped.
- Please inspect the product upon delivery and contact us immediately
if there are any issues.
FAQ:
Q: What certifications does this Cold Room Evaporator have?
A: This Cold Room Evaporator is certified with CE and ISO.
Q: What is the minimum order quantity for this Cold Room
Evaporator?
A: The minimum order quantity for this Cold Room Evaporator is 1
unit.
Q: What is the price range for this Cold Room Evaporator?
A: The price range for this Cold Room Evaporator is between $1000
and $100000.
Q: What are the packaging details for this Cold Room Evaporator?
A: The packaging details for this Cold Room Evaporator can be
customized.
Q: What is the delivery time for this Cold Room Evaporator?
A: The delivery time for this Cold Room Evaporator is 20 days.
Q: What are the payment terms for this Cold Room Evaporator?
A: The payment terms for this Cold Room Evaporator are TT and L/C.
Q: What is the supply ability for this Cold Room Evaporator?
A: The supply ability for this Cold Room Evaporator is 300000 units
per year.
