Product Description:

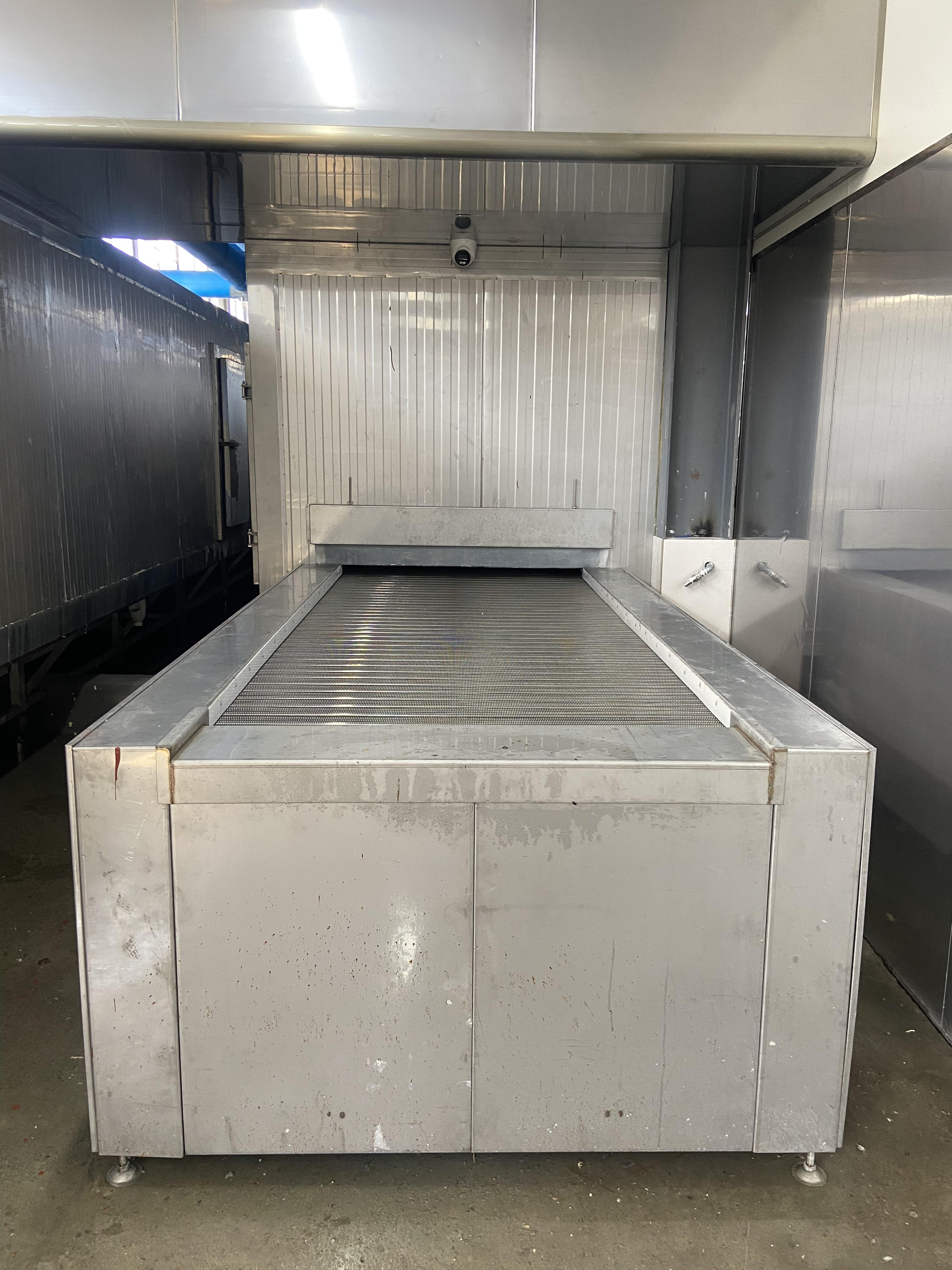

The quick-freezing tunnel is a specialized piece of equipment
designed for rapid cooling in the food, chemical, and industrial
industries. It is engineered to quickly cool a wide range of
objects including food, daily chemical products, and industrial
production objects.
Applications:
Our cooling equipment is suitable for a wide range of objects,
including food items, chemicals, and industrial materials. Our
cutting-edge technology ensures that your products are cooled to
their required temperature in a short amount of time, preventing
any spoilage or damage.
Customization:
Looking for an expeditious blast freezer that can instantly chill
your products? Look no further than DM's DM-SDSD Tunnel Blast
Freezer, manufactured in China. With a direct expansion cooling
system, this fast freezing system has a high-accuracy and can
handle up to 1000kg/h of product. Its continuous quick-freezing
work automation ensures your products are rapidly frozen to
maintain their quality.
| Quick Freezing Tunnel Specifications |
| Model | Dimensions | Belt Size | Freezing Time | Power | Weight |
| (L*W*H) | (L*W) | (min) | (KW) | (KG) |
| AS-6-0.8 | 6.5X1.72X2.1 | 6X0.8 | 3-20min | 6KW | 3000kg |
| AS-9-0.8 | 9.5X1.72X2.1 | 9X0.8 | 3-40min | 8KW | 3500kg |
| AS-14-0.8 | 14.5X1.72X2.1 | 14X0.8 | 3-65min | 12KW | 5000kg |
|
| AS-6-1.25 | 6.5X2.17X2.1 | 6X1.25 | 3-20min | 7KW | 3500kg |
| AS-9-1.25 | 9.5X2.17X2.1 | 9X1.25 | 3-40min | 10KW | 4500kg |
| AS-14-1.25 | 14.5X2.17X2.1 | 14X1.25 | 3-65min | 16KW | 6500kg |
| General technical parameters |
| Height of feed port from ground | 900mm |
| Height of frozen product | 150mm |
| 380V |
| Exhaust pipe size | 300mm |
Support and Services:
The Quick Tunnel Freezer is a high-performance freezing solution
designed to rapidly freeze products with minimal dehydration and
maximum quality retention. Our technical support team is available
to provide assistance with installation, maintenance, and
troubleshooting to ensure optimal performance and longevity of your
freezer. In addition, we offer comprehensive training services to
ensure proper operation and maintenance procedures are followed,
maximizing efficiency and minimizing downtime. Our service team is
also available for on-site repairs and replacements of any
necessary parts to minimize disruption to your production schedule.
Contact us for more information on our technical support and
service offerings for the Quick Tunnel Freezer.
Packing and Shipping:
Product Packaging:
The Quick Tunnel Freezer product will be packaged in a sturdy
cardboard box with foam inserts to protect the product during
shipping. The box will be labeled with the product name, company
logo, and handling instructions.
Shipping:
We offer free standard shipping for all orders within the United
States. Expedited shipping options are available at an additional
cost. Once your order is placed, our team will prepare the product
for shipment within 1-2 business days. You will receive a tracking
number via email once your order has been shipped.
FAQ:
Q: Where was this freezer manufactured?
A: This freezer was manufactured in China.
Q: What is the capacity of this freezer?
A: The capacity of this freezer varies depending on the model. Please
refer to the product specifications for more information.
Q: What is the warranty for this freezer?
A: Please refer to the warranty information provided with the product
for details on the warranty for this freezer.
