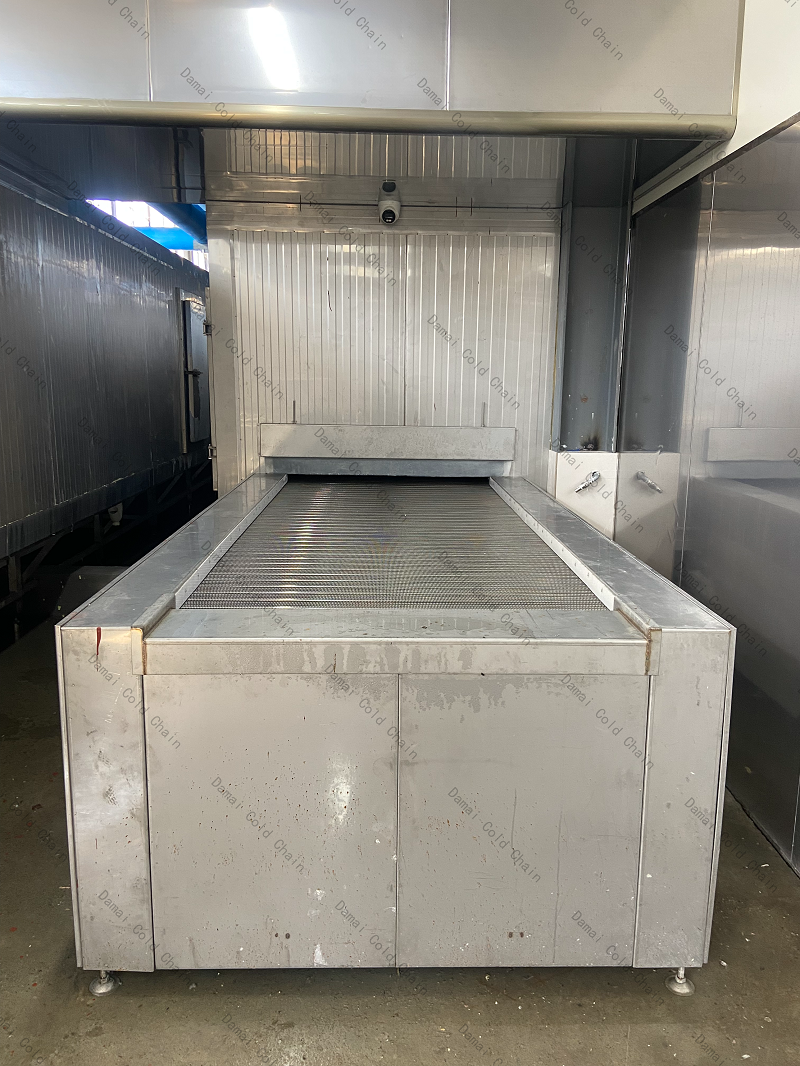

Continuous Quick-freezing Work Rapid Tunnel Cooler with Customized
Conveyor Speed
Product Description:
Quick-freezing tunnels are extensively used in the production
process of quick-frozen foods, including quick-frozen vegetables,
quick-frozen meat, quick-frozen pastries, quick-frozen fruits,
quick-frozen aquatic products, quick-frozen prepared foods, and
quick-frozen ice cream. The excellent cooling performance of the
tunnel is achieved through its high processing capacity, low energy
consumption and significant heat transfer efficiency.
Applications:
If you are working in the food industry, you can benefit from this
rapid cooling equipment as it can quickly cool down food products
that need to be stored at low temperatures and preserve their
quality. Similarly, in chemical industries, this equipment can
rapidly cool down chemical reactions in a controlled environment.
As for the industrial sector, this cooling equipment can rapidly
cool down machinery and equipment, preventing overheating and
keeping production processes running smoothly.
| Quick Freezing Tunnel Specifications |
| Model | Dimensions | Belt Size | Freezing Time | Power | Weight |
| (L*W*H) | (L*W) | (min) | (KW) | (KG) |
| AS-6-0.8 | 6.5X1.72X2.1 | 6X0.8 | 3-20min | 6KW | 3000kg |
| AS-9-0.8 | 9.5X1.72X2.1 | 9X0.8 | 3-40min | 8KW | 3500kg |
| AS-14-0.8 | 14.5X1.72X2.1 | 14X0.8 | 3-65min | 12KW | 5000kg |
|
| AS-6-1.25 | 6.5X2.17X2.1 | 6X1.25 | 3-20min | 7KW | 3500kg |
| AS-9-1.25 | 9.5X2.17X2.1 | 9X1.25 | 3-40min | 10KW | 4500kg |
| AS-14-1.25 | 14.5X2.17X2.1 | 14X1.25 | 3-65min | 16KW | 6500kg |
| General technical parameters |
| Height of feed port from ground | 900mm |
| Height of frozen product | 150mm |
| 380V |
| Exhaust pipe size | 300mm |
Customization:
- Product: Tunnel Blast Freezer
- Cooling System: Direct Expansion
- Dimension: Customized
- Belt Speed: 0-10m/min
- Power Consumption: Customized
Our product customization services allow you to tailor the DM-SDSD
Tunnel Blast Freezer to fit your specific needs. Whether you
require swift blast storage or a rapid tunnel cooler, we can
customize the cooling system and power consumption to meet your
requirements. Additionally, we can customize the dimensions of the
freezer to fit your available space and ensure that the belt speed
is appropriate for your production line. Contact us to learn more
about our product customization services.
Support and Services:
The Quick Tunnel Freezer is a high-quality product that is designed
to freeze a wide variety of food products in a fast and efficient
manner. To ensure that your Quick Tunnel Freezer always performs at
its best, we offer a range of technical support and services
including:
- Installation and setup assistance
- On-site training for your staff
- Regular maintenance and servicing
- Repairs and replacement parts
Our team of experienced technicians are available to provide any
assistance you may need with your Quick Tunnel Freezer. Please
don't hesitate to contact us for any technical support or service
inquiries.
Packing and Shipping:
Product Packaging:
- The Quick Tunnel Freezer will be securely packed in a wooden crate
to prevent any damages during transportation.
- The crate will be labeled with the product name, weight, and
dimensions for easy identification.
Shipping:
- The Quick Tunnel Freezer will be shipped via air or sea freight,
depending on the customer's preference and location.
- The shipment will be arranged by our logistics team, who will
provide the customer with the necessary documentation and tracking
information.
- The estimated delivery time will be provided to the customer upon
shipment.
FAQ:
Q: Where is this freezer made?
A: This freezer is made in China.
Q: What is the freezing capacity of this freezer?
A: The freezing capacity of this freezer is 1000kg/hour.
Q: How long does it take for this freezer to freeze food?
A: It takes approximately 20-30 minutes for this freezer to freeze
food.
