Temperature: -5~-5ºCand -25~-40 ºC
Horsepower: 50HP ~ 375HP
Compressor type: Semi-hermetic screw
Cooling mode: air cooling, water cooling
Voltage: 380V/3Ph/50Hz,other kinds of power supply is optional
Refrigerant: R404A, R507A, R22
Screw Compressor Unit:
High-temperature Type: Evaporating temperature of 12.5°C~-10, and
the nominal power of compressor motor is from 60HP to 600HP.
Intermediate-temperature Type: Evaporating temperature of -15°C~-30°C, and the nominal power of
compressor motor is from 50HP to 540HP.
Low-temperature Type: Evaporating temperature of -35°C~-45°C, and
the nominal power of compressor motor is from 50HP to 540HP.
Application:

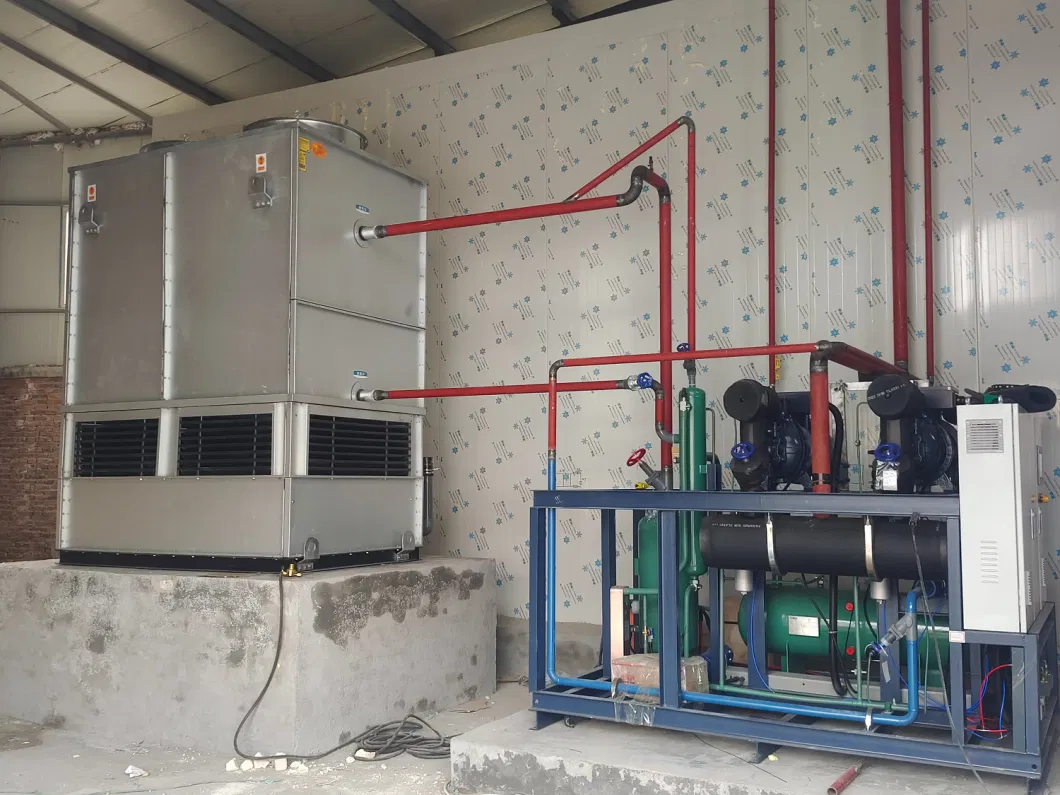

Parallel compressor unit is mostly used to work together with cold
rooms, walk in freezers, spiral freezers, tunnel freezers, plate
freezers or other refrigeration projects. The compressors quantity
on unit can be 2, 3, 4, 5, 6 or more. We use compressors mostly and
other compressor brands will be also available according to
customers requirement.
| Unit parameters |
| Model | DM-1D-20-RZL | DM-1D-25-RZL | DM-1D-30-RZL | DM-1D-40-RZL | DM-1D-50-RZL | DM-1D-60-RZL |
| Evaporative Temperature | -15º C~-50ºC |
| Refrigerant | R404A/R507A |
| Power Supply | 380V/50Hz |
| Compressor Model | HSN5343-20 | HSN5353-25 | HSN5363-30 | HSN6451-40 | HSN6461-50 | HSN7451-60 |
| Number ofCompressor | 1 | 1 | 1 | 1 | 1 | 1 |
| CoolngCapacity(KW) | 55 | 64.2 | 73.3 | 88.5 | 101.5 | 125.9 |
| Power(KW) | 23.8 | 27.2 | 30.8 | 34.6 | 42.5 | 50 |
| Suction Pipeinterface | 54 | 54 | 54 | 54 | 54 | 76 |
| Exhaust pipeinterface | 42 | 42 | 42 | 42 | 42 | 54 |
| Outlet interfac | 28 | 28 | 28 | 28 | 28 | 45 |
| Inlet pipe interface | 35 | 35 | 35 | 35 | 35 | 35 |
| Length | 2000 | 2000 | 2000 | 2200 | 2200 | 2400 |
| Width | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Height | 1500 | 1500 | 1500 | 1500 | 1500 | 1700 |
| Compressor | Copland,Bock,etc. |
| Certification | CE |
Standard configuration of screw type parallel compressor
refrigeration unit:
1.Low-temp type: screw compressor, liquid receiver, gauge
panel,high and low pressure controller, electric cabinet, oil
separator, water-cooling type oil cooler, economizer, liquid supply
filter,suction line filter,injection components.
2.High-temp type: screw compressor, liquid receiver,gauge panel,
high and low pressure controller, electric cabinet, oil
separator,spray liquid cooling system, liquid supply filter,suction
line filter.1. Utilized Semi-Hermetic Refrigeration Compressors; Good Quality
and Reliable Performance;2. The products feature by their structures of muti semi-hermetic
Compressors paralleled together to from one integrated systems. The
discharge pipes, suction pipes are one shared by all the
compressors for each units. The paralleled system is simpler for
intergrated control and cap adjustment;3. Structure is compacted to save installation space;4. According to the change of cooling load,the multilevel energy
regulation can be realized and also can reduce the equipment
running cost.5. Reduce the influence on operation that caused by machine failure
so as to increase the realibity of the unit operation.6. R404a, R22 units can be provided.Why choose our company ?
1. Because our company has CAC official .
2. We have a good one-year after-sales service.
3. We have over 20 years of sales experience.
4. We have our own factory.
5. We will try our best to provide a professional response as soon
as possible.
Product advantages
1. Quite operation.
2. Seamless connection.
3. Easy installation
4. Beautiful and elegant placement of circuit devices.
5. Using the best equipment.
6. Not easily damaged.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in refrigeration
equipment.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage
of OEM, just give us the actual products or your idea that you
want, we will manufacture for you.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need
to produce, we can discuss the MOQ according to customer's exact
situation.
Q: Visting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is
located Shaoxin city,Zhejiang province,China mainland.
