Product Description:
H-shaped Tubes
H-shaped tubes are a crucial component in the system, providing a
pathway for the flow of fluids or gases between different parts of
the equipment. Their design facilitates efficient heat transfer and
fluid circulation within the system.
Fins
Fins are thin, extended surfaces that are attached to heat transfer
surfaces to increase the rate of heat transfer. By increasing the
surface area available for heat exchange, fins improve the overall
efficiency of the system.
Axial Fans
Axial fans are used to facilitate the movement of air within the
system. Their axial flow design helps in generating airflow
parallel to the fan's axis, providing effective cooling and
ventilation for the equipment.
Fan Motor
The fan motor is responsible for driving the operation of the axial
fan. It converts electrical energy into mechanical energy to power
the fan, enabling the efficient circulation of air within the
system.
Air Inlet/Outlet Grilles
Air inlet and outlet grilles serve as entry and exit points for air
within the system. They play a vital role in regulating the airflow
and maintaining proper ventilation for the equipment.
Headers/Manifolds
Headers or manifolds are distribution components that help in
controlling the flow of fluids or gases within the system. They
ensure uniform distribution and collection of the fluid medium
throughout the equipment.
Support Frame
The support frame provides structural stability and support for the
various components of the system. It helps in securing the
components in place and maintaining the overall integrity of the
equipment.
Deflector Plates
Deflector plates are used to redirect the flow of air or fluid
within the system. By altering the direction of the flow, deflector
plates help in optimizing the distribution and circulation of the
medium for improved performance.
Features:
Advantages
1. Compact Design: The U-shaped tube layout minimizes space requirements while
maximizing heat transfer surface area, making it ideal for
installations with limited space.
2. Water-Free Operation: These systems do not consume water or require complex water
circulation systems, making them environmentally friendly and
well-suited for arid regions.
3. Versatility: They are suitable for diverse applications, ranging from small
HVAC systems to large industrial refrigeration units.
4. Durability: The use of corrosion-resistant materials such as aluminum fins and
galvanized steel casing ensures reliability even in harsh
environments.
Technical Parameters:
Main Parameters
Temperature: 0~10°C and -15~-25°C
Nominal heat exchange capacity: 17200~62000
Fan diameter: 400~550mm
Voltage: 380V/220V
Refrigerant: R404A-R507A*R22
Applications:
Product Applications
2. Industrial Refrigeration: Used in food processing plants, cold storage warehouses, and
beverage factories to maintain low temperatures.
3. Data Centers: Provides cooling for server racks and IT equipment.
4. Renewable Energy Systems: Integrated into solar-powered cooling systems or geothermal heat
pumps.
5. Medical Facilities: Cools MRI machines, laboratory equipment, and pharmaceutical
storage units.
6. Transportation Cooling: Used in refrigerated trucks, shipping containers, and railway
cooling systems.
7. Residential Heat Pumps: Supports heating and cooling in homes, especially in regions with
extreme climates.
8. Agricultural Storage: Preserves perishable goods like fruits, vegetables, and flowers in
cold storage facilities.
9. Petrochemical Plants: Cools equipment and processes in refineries or chemical production
lines.
Customization:

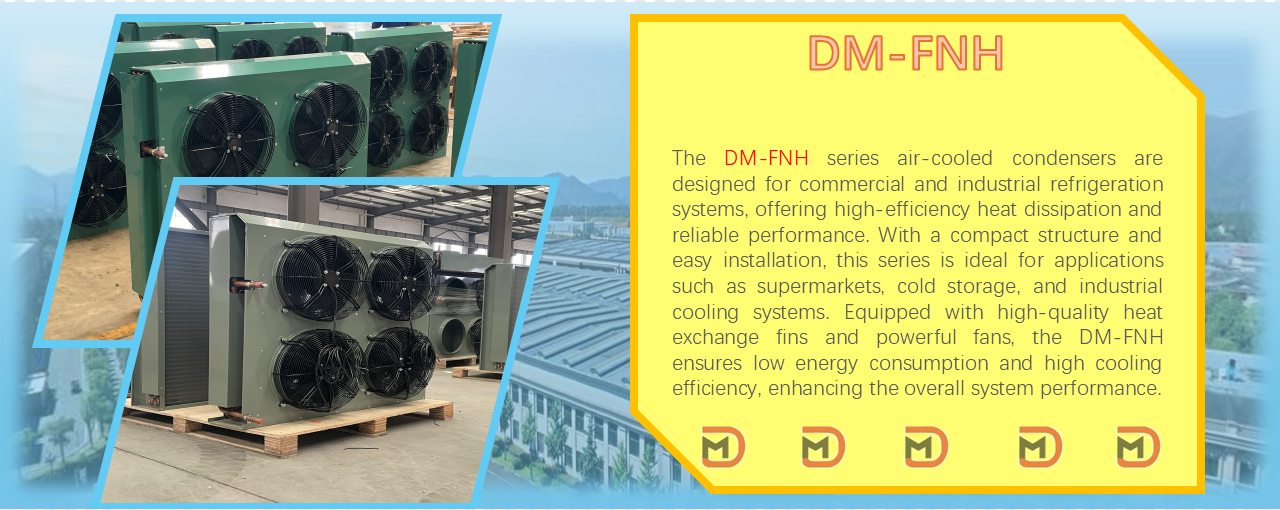

Air Cooled Fnh Refrigeration Condenser for Cold Storage
H-Type Air Cooled Condenser
Air Cooled Condenser
Product Customization Services:
- Brand Name: Damai
- Model Number: DM-FNH
- Place Of Origin: China
- Packaging Details: Wooden Case
- Delivery Time: 15 Work Days
- Payment Terms: T/T
- Supply Ability: 1000000pcs/year
- Fan Motor Power: 500W
- Tube Type: Smooth
- Pressure Drop: Depends On Fin And Tube Type
- Inlet/Outlet Connection: 3/8 Inch
- Usage: For Refrigeration Unit
FAQ:
Q: What is the brand name of the Air Cooler Condenser?
A: The brand name of the Air Cooler Condenser is Damai.
Q: What is the model number of the Air Cooler Condenser?
A: The model number of the Air Cooler Condenser is DM-FNH.
Q: Where is the Air Cooler Condenser manufactured?
A: The Air Cooler Condenser is manufactured in China.
Q: What are the accepted payment terms for purchasing the Air
Cooler Condenser?
A: The accepted payment terms for purchasing the Air Cooler
Condenser are T/T and L/C.
