Product Description:
Parameter Description
| Product Name | Polyurethane Sandwich Composite Panel/ Cold storage panels |

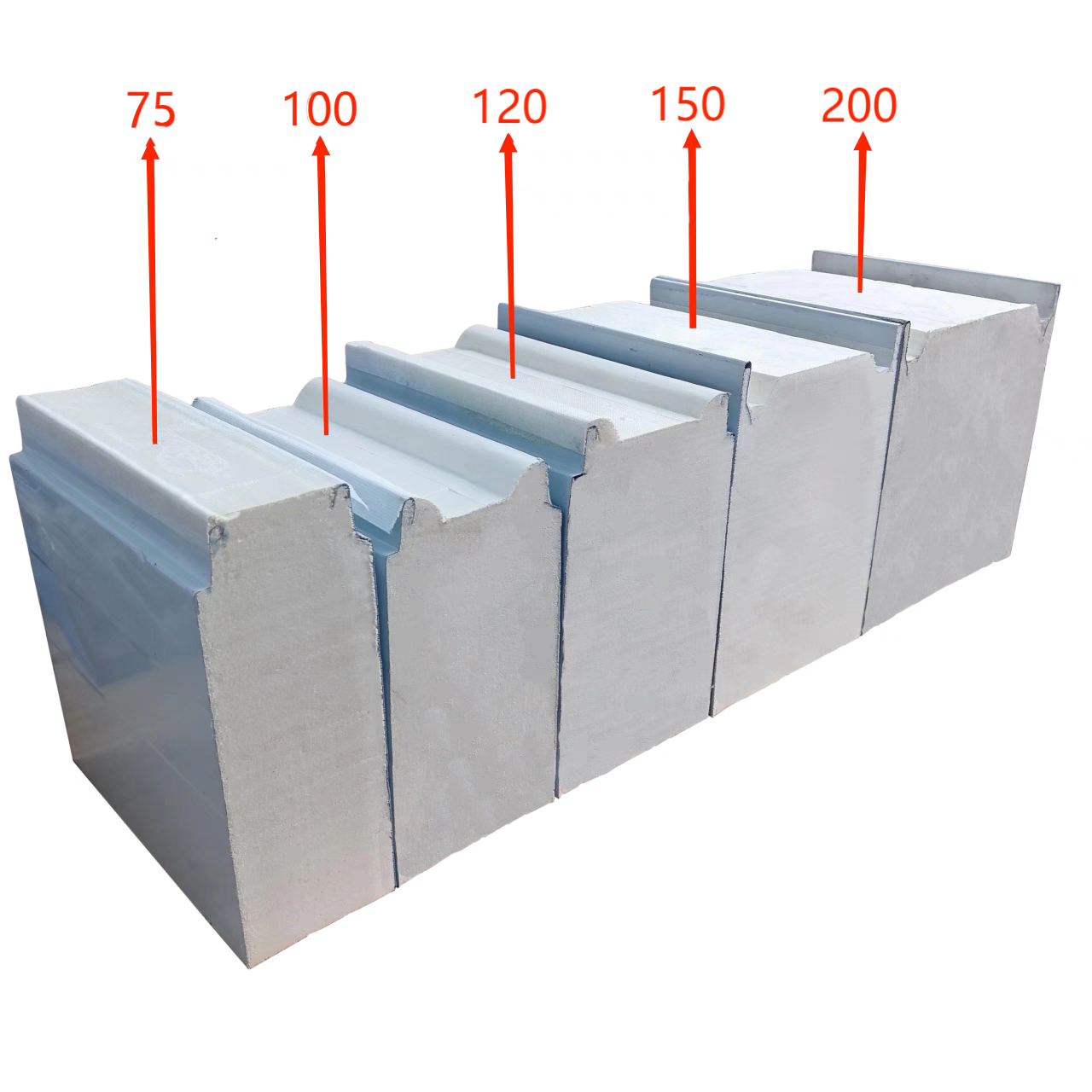

| Thickness | 50/75/100/120/150/200mm customizable |
| Density | ≥38(kg/m3) |
| Heat Transfer Coefficient | 0.45W/(m2.k) |
| Thermal Conductivity | 0.024W/(m.k) |
| Oxygen Index | 28% |
| Combustion Performance | EN13501-B s2d0 |
| Main Application Occasions | cold room panel |
Sheet name
| Sheet name | Polyurethane wall panel |
| Effective lap (mm) | 1000mm |
| Plate thickness (mm) | 50/75/100/120/150/200 |
| Color plate thickness (mm) | 0.4-0.8 |
| Optional panels | Color coated steel, stainless steel, galvanized steel |
| Regular colors | White gray, large wall gray, dark blue |
| Plate effect | flat, embossed, small ripples, pressure ribs |
Features:
Surface optional materials and advantages
Advantages:
With good thermal insulation performance, high compressive
strength, flexible combination, easy installation, etc.
Field of employment:
Cold chain logistics, biomedicine, chemical industry, food, cold
storage, frozen storage, fruits and vegetables, edible fungi, meat
processing, etc
Thickness of plating (mm):
150, 180, 200
Fireproof performance:
B1, B2 level
Technical Parameters:
Parameter Description
Product Name: Polyurethane Sandwich Composite Panel/ Cold storage panels
Thickness: 100/120/150/200mm customizable
Density: ≥38(kg/m3)
Heat Transfer Coefficient: 0.45W/(m2.k)
Thermal Conductivity: 0.024W/(m.k)
Oxygen Index: 28%
Combustion Performance: EN13501-B s2d0
Main Application Occasions: cold room panel
Sheet name: Polyurethane wall panel
Effective lap (mm): 1000mm
Plate thickness (mm): 50/75/100/120/150/200mm
Color plate thickness (mm): 0.4-0.8
Optional panels: Color coated steel, stainless steel, galvanized steel
Regular colors: White gray, large wall gray, dark blue
Plate effect: flat, embossed, small ripples, pressure ribs
Applications:
In the realm of logistics, there is a crucial sector known as cold
chain logistics. This sector encompasses the transportation and
storage of temperature-sensitive products across various industries
such as biomedicine, the chemical industry, and the food sector.
Within the cold chain logistics domain, there are specific areas of
focus including cold storage, frozen storage, and the handling of
perishable goods such as fruits and vegetables, edible fungi, and
meat products.
Customization:
Cool room Insulation Panels, Cool Store Wall Panels, Refrigerated
Cold Room Panels
Product Customization Services for Cold Room Panel:
- Brand Name: DM
- Model Number: DM-LKB-001
- Place Of Origin: Made In China
- Certification: CE;
- Minimum Order Quantity: 1
- Price: $200~$100000
- Delivery Time: 30 Work Days
- Payment Terms: T/T;
- Supply Ability: 1000000㎡/year
- Use For: Steel Structures
- Fireproof Grade: B1/B2
- Insulation Material: PU/PIR
- Shelves: Adjustable/Fixed
- Refrigeration Parts: Danfoss Castel Emerson
Support and Services:
Our Product Technical Support and Services for the Cold Room Panel
include:
- Comprehensive installation guidance to ensure proper setup
- Troubleshooting assistance for any operational issues
- Regular maintenance recommendations to extend product lifespan
- Access to our knowledgeable support team for any questions or
concerns
