Product Description:

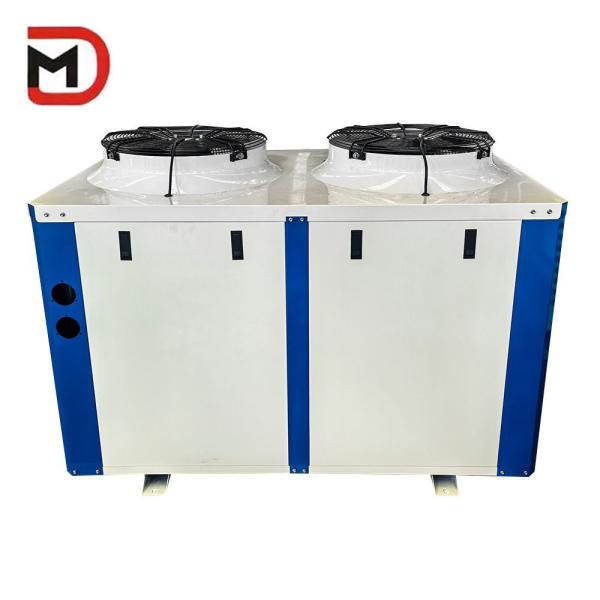

U-type air-cooled condensing unit is a commonly used equipment in commercial and industrial
refrigeration systems. It finds extensive applications in settings
such as supermarkets, cold storage facilities, food processing
plants, and chemical and pharmaceutical storage areas.
Its primary role is to expel the heat absorbed by the refrigerant
from the evaporator, ensuring the efficient operation of the
refrigeration system. The unique design characteristics of the
U-type air-cooled condensing unit provide it with distinct
advantages in particular application environments.
Features:
Compact Design
The design of U-shaped air-cooled condensing units is typically
compact, featuring a small footprint that makes installation and
maintenance easy. The unique U-shaped structure allows for
efficient use of space while ensuring optimal heat dissipation to
meet various site requirements.
High Efficiency and Energy Saving
The unit incorporates efficient heat exchange technology, enhancing
the cooling effect significantly. Its efficient air-cooled
condenser and optimized air flow design increase the heat exchange
capacity while reducing energy consumption, resulting in effective
energy-saving benefits.
Strong Durability
The shell of the U-shaped air-cooled condensing unit is typically
constructed from corrosion-resistant materials, providing effective
protection against corrosion in harsh environments and prolonging
the equipment's service life. It offers superior adaptability,
particularly in humid or dusty conditions.
Technical Parameters:
| Serial number | Model | Heat exchange area
㎡ | Heat exchange
Kw | Fan motor | Import and export
(mm) | Shape size(mm) | Installation size
(mm) |
| Number | Diameter | Power(W) | Air Volume | Length | Width | Height |
| 1 | FNU-32 | 32 | 10.6 | 1 | φ400 | 180 | 3400 | φ19/φ12 | 720 | 620 | 700 | 680×490 |
| 2 | FNU-40 | 40 | 13.2 | 1 | φ450 | 250 | 4800 | φ19/φ12 | 740 | 640 | 800 | 700×490 |
| 3 | FNU-50 | 50 | 16.6 | 1 | φ450 | 250 | 4800 | φ19/φ12 | 820 | 770 | 800 | 830×550 |
| 4 | FNU-50 | 50 | 16.6 | 2 | φ350 | 2×129 | 2×2300 | φ19/φ12 | 1060 | 650 | 800 | 710×590 |
| 5 | FNU-60 | 60 | 19.1 | 1 | φ500 | 414 | 6500 | φ22/φ16 | 920 | 840 | 800 | 900×590 |
| 6 | FNU-60 | 60 | 19.1 | 2 | φ350 | 2×129 | 2×2300 | φ22/φ16 | 1160 | 720 | 800 | 790×670 |
| 7 | FNU-70 | 70 | 21.8 | 2 | φ400 | 2×180 | 2×3400 | φ22/φ16 | 1160 | 730 | 900 | 790×670 |
| 8 | FNU-80 | 80 | 26.4 | 2 | φ450 | 2×250 | 2×4800 | φ22/φ16 | 1320 | 850 | 900 | 910×820 |
| 9 | FNU-100 | 100 | 33.1 | 2 | φ500 | 2×414 | 2×6500 | φ25/φ19 | 1420 | 880 | 1000 | 940×870 |
| 10 | FNU-120 | 120 | 39.6 | 2 | φ500 | 2×414 | 2×6500 | φ25/φ19 | 1420 | 880 | 1200 | 940×870 |
| 11 | FNU-130 | 130 | 42.9 | 2 | φ500 | 2×414 | 2×6500 | φ25/φ19 | 1420 | 880 | 1300 | 940×870 |
| 12 | FNU-150 | 150 | 49.5 | 2 | φ550 | 2×600 | 2×8300 | φ28/φ22 | 1550 | 880 | 1400 | 940×970 |
| 13 | FNU-160 | 160 | 52.8 | 2 | φ550 | 2×600 | 2×8300 | φ28/φ22 | 1600 | 920 | 1400 | 940×970 |
Applications:
Cold Storage Refrigeration System:
The U-shaped air-cooled condensing unit is designed to provide a
stable refrigeration effect in cold storage facilities. It ensures
a constant temperature inside the cold storage, making it suitable
for storing food, medicine, and other perishable items.
Supermarket Cold Chain System:
Supermarkets and retailers rely on a stable cold chain environment
to keep their products fresh. The U-shaped air-cooled condensing
unit is essential in maintaining the freshness of food items on
shelves.
Industrial Cooling:
Industrial cooling systems are crucial for maintaining the
temperature of equipment and process flows in industrial
production. The U-shaped air-cooled condensing unit is effective in
reducing the temperature of process equipment, ensuring stable
production processes.
Customization:
---------------------------------------------------------------------------------
Product Customization Services for the Condensing Unit:
Brand Name: DM
Model Number: DM-UNIT-U
Place of Origin: China
Certification: CE;ISO
Minimum Order Quantity: 1
Price: $2000~$100000
Packaging Details: Wooden Case
Delivery Time: 30 Work Days
Payment Terms: T/T
Supply Ability: 1000000pcs/year
Use Nature: Industry Refrigeration
Condenser: Air-cooled Condenser
Type: Outdoor
Origin: Zhejiang, China
Nominal Capacity: 3 HP To 40 HP
Keywords: Freezer Room Condensing Unit, Commercial Refrigeration
Condensing Unit
