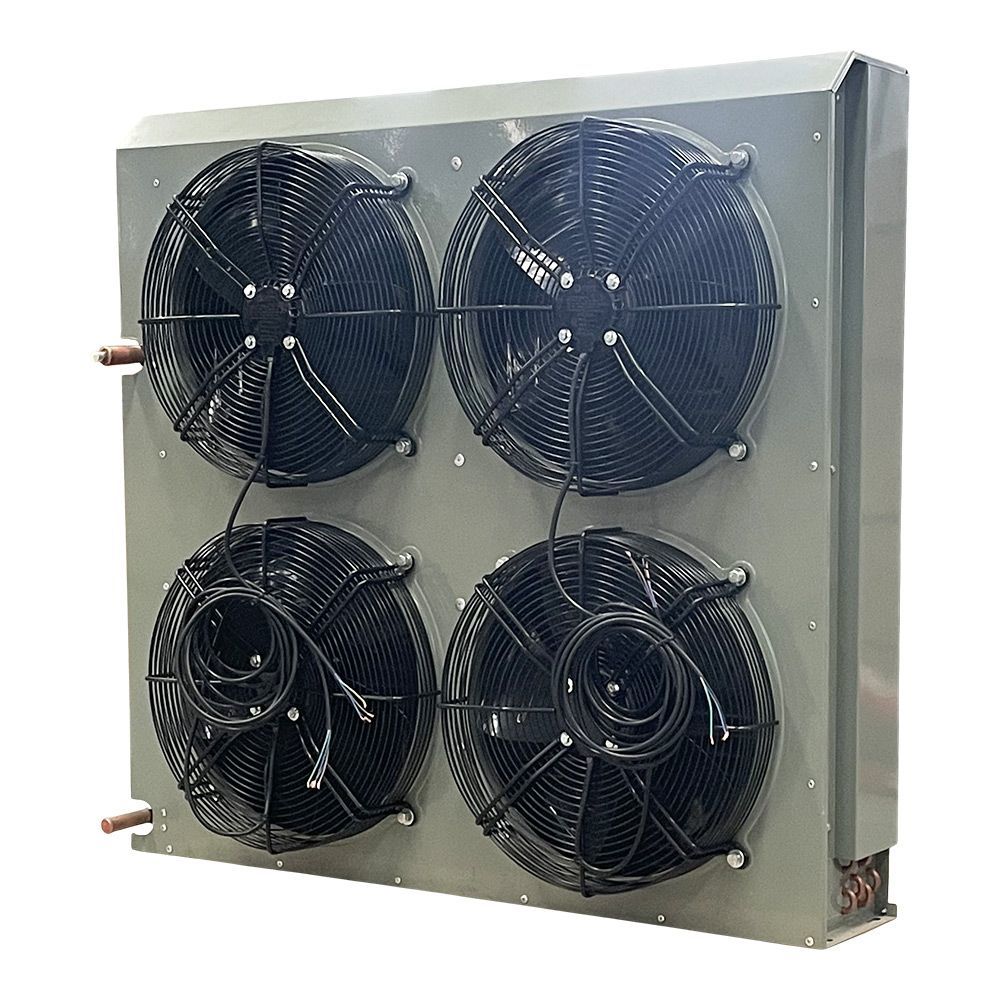

Product Description:
H-type air-cooled condenser is a type of equipment that is widely
applied in the realms of air conditioning, refrigeration, and
industrial cooling. Its primary function is to eliminate heat from
the cooling medium by means of air cooling technology. This
condenser is named after its "H"-shaped structural design. The
operational principle involves utilizing an electric fan to propel
external air through the condenser tube, allowing the air flow to
carry away the heat of the medium in the condenser and facilitate
the condensation process.
Features:
The design of H-type air-cooled condensers is typically compact, allowing for space-saving installation and efficient operation in smaller environments.
The H-type condenser incorporates a highly efficient heat exchange tube and fin design , leading to enhanced heat dissipation capability, rapid reduction
in working temperature, and improved cooling system efficiency.
H-type air-cooled condensers find extensive applications in air conditioning, refrigeration equipment, refrigeration units, and
cooling systems , particularly in locations lacking an adequate water source or
with limited water availability.
When compared to water-cooled condensers, H-type air-cooled condensers eliminate the need for additional water pumps or reservoirs,
making them easier to install and maintain and suitable for a variety of uses.
Technical Parameters:
| Serial number | Model | Heat exchange
(KW) | Fan electric machine |
| Number | Fan | Power | Air volume |
| 1 | FNH4-70 | 23.1 | 4 | φ400 | 4×180 | 4×3400 |
| 2 | FNH4-80 | 26.4 | 4 | φ400 | 4×180 | 4×3400 |
| 3 | FNH4-100 | 33.1 | 4 | φ400 | 4×180 | 4×3400 |
| 4 | FNH4-115 | 37.9 | 4 | φ400 | 4×180 | 4×3400 |
| 5 | FNH4-120 | 39.6 | 4 | φ400 | 4×180 | 4×3400 |
| 6 | FNH4-130 | 42.9 | 4 | φ450 | 4×250 | 4×4800 |
| 7 | FNH4-150 | 49.5 | 4 | φ450 | 4×250 | 4×4800 |
| 8 | FNH4-160 | 52.8 | 4 | φ450 | 4×250 | 4×4800 |
| 9 | FNH4-180 | 59.4 | 4 | φ450 | 4×250 | 4×4800 |
| 10 | FNH4-200 | 66 | 4 | φ500 | 4×414 | 4×6500 |
| 11 | FNH6-240 | 79.2 | 6 | φ450 | 6×250 | 6×4800 |
Applications:
Air conditioning system: The air conditioning system serves as the condensing part of the
air conditioner, facilitating the dissipation of heat from the air
conditioning refrigerant.
Industrial cooling system: Industrial cooling systems are crucial for applications such as
cooling equipment and mechanical systems in locations where
efficient heat dissipation is necessary for optimal performance.
Refrigeration equipment: Refrigeration equipment, including items like refrigerators and
cold storage units, utilize air cooling systems to rapidly extract
heat from the condenser for effective cooling.
Packing and Shipping:
Product Packaging for Air Cooler Condenser:
- The Air Cooler Condenser will be carefully wrapped in protective
packaging to prevent any damage during transportation.
- The packaging will include shock-absorbing materials to ensure
the safety of the product.
- A user manual and installation guide will be included inside the
package.
Shipping Information:
- The Air Cooler Condenser will be shipped via a reputable courier
service to ensure timely delivery.
- Customers will receive a tracking number to monitor the shipment
status.
- Shipping insurance will be provided to cover any unforeseen
circumstances during transit.
