Product Description:

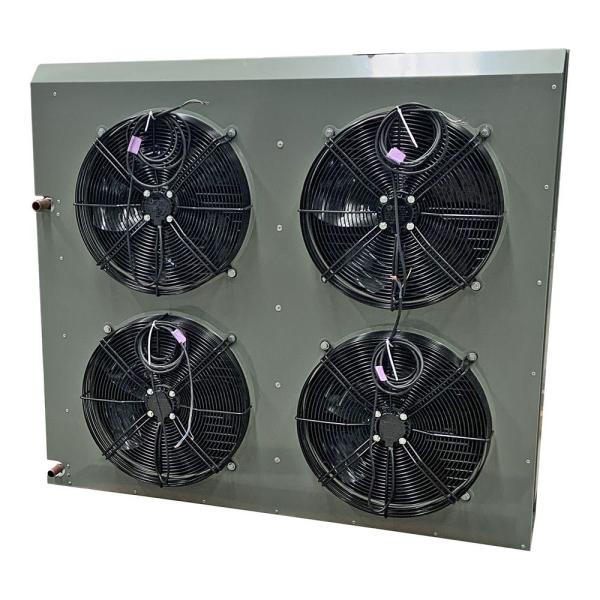

Introduction to H-type Air-Cooled Condenser:
H-type air-cooled condenser is a versatile piece of equipment
widely utilized in air conditioning, refrigeration, industrial
cooling, and various other applications. This type of condenser
primarily functions by extracting heat from the cooling medium
through the utilization of air cooling technology. The distinctive
"H"-shaped structural design of the condenser is where it derives
its name from.
Operating Principle:
The operational concept of the H-type air-cooled condenser involves
employing an electric fan to propel outside air through the
condenser tube. By harnessing the airflow, the condenser
effectively removes the heat contained within the heat medium,
facilitating the condensation process.
Features:
The design of H-type air-cooled condensers is usually compact,
which can save installation space and can operate efficiently in a
relatively small environment.
The H-type condenser adopts an efficient heat exchange tube and fin
design, which makes it have a strong heat dissipation capacity, can
quickly reduce the working temperature, and improve the cooling
efficiency of the system.
H-type air-cooled condensers are widely used in air conditioning,
refrigeration equipment, refrigeration units, cooling systems and
other fields, especially suitable for use in places where there is
no water source or limited water source.
Compared with water-cooled condensers, H-type air-cooled condensers
do not require additional water pumps or pools, and are easier to
install and maintain, suitable for various application scenarios.
Technical Parameters:
序号
Serial number | 型号
Model | 换热量
Heat exchange
(KW) | 风扇电机 Fan electric machine |
数量
Number | 风叶
Fan | 功率
Power | 风量
Air volume |
| 1 | FNH4-70 | 23.1 | 4 | φ400 | 4×180 | 4×3400 |
| 2 | FNH4-80 | 26.4 | 4 | φ400 | 4×180 | 4×3400 |
| 3 | FNH4-100 | 33.1 | 4 | φ400 | 4×180 | 4×3400 |
| 4 | FNH4-115 | 37.9 | 4 | φ400 | 4×180 | 4×3400 |
| 5 | FNH4-120 | 39.6 | 4 | φ400 | 4×180 | 4×3400 |
| 6 | FNH4-130 | 42.9 | 4 | φ450 | 4×250 | 4×4800 |
| 7 | FNH4-150 | 49.5 | 4 | φ450 | 4×250 | 4×4800 |
| 8 | FNH4-160 | 52.8 | 4 | φ450 | 4×250 | 4×4800 |
| 9 | FNH4-180 | 59.4 | 4 | φ450 | 4×250 | 4×4800 |
| 10 | FNH4-200 | 66 | 4 | φ500 | 4×414 | 4×6500 |
| 11 | FNH6-240 | 79.2 | 6 | φ450 | 6×250 | 6×4800 |
Applications:
Air Conditioning System:
When it comes to air conditioning systems, the condensing unit
plays a crucial role by working to release the heat present in the
refrigerant used in the air conditioner.
Industrial Cooling System:
In industrial settings, various types of equipment, such as cooling
systems and mechanical units, are used in places where efficient
heat dissipation is required to maintain operations smoothly.
Refrigeration Equipment:
Consider refrigeration equipment like refrigerators and cold
storage units that rely on air cooling systems to effectively and
rapidly extract heat from the condenser, ensuring optimal cooling
performance.
Packing and Shipping:
Product Packaging:
The Air Cooler Condenser is carefully packaged in a sturdy
cardboard box to ensure safe delivery. The product is surrounded by
protective foam to prevent any damage during shipping.
Shipping:
We offer fast and secure shipping for the Air Cooler Condenser
product. Orders are typically processed within 1-2 business days
and shipped via a reputable courier service. Tracking information
will be provided to allow you to monitor the delivery status of
your order.
