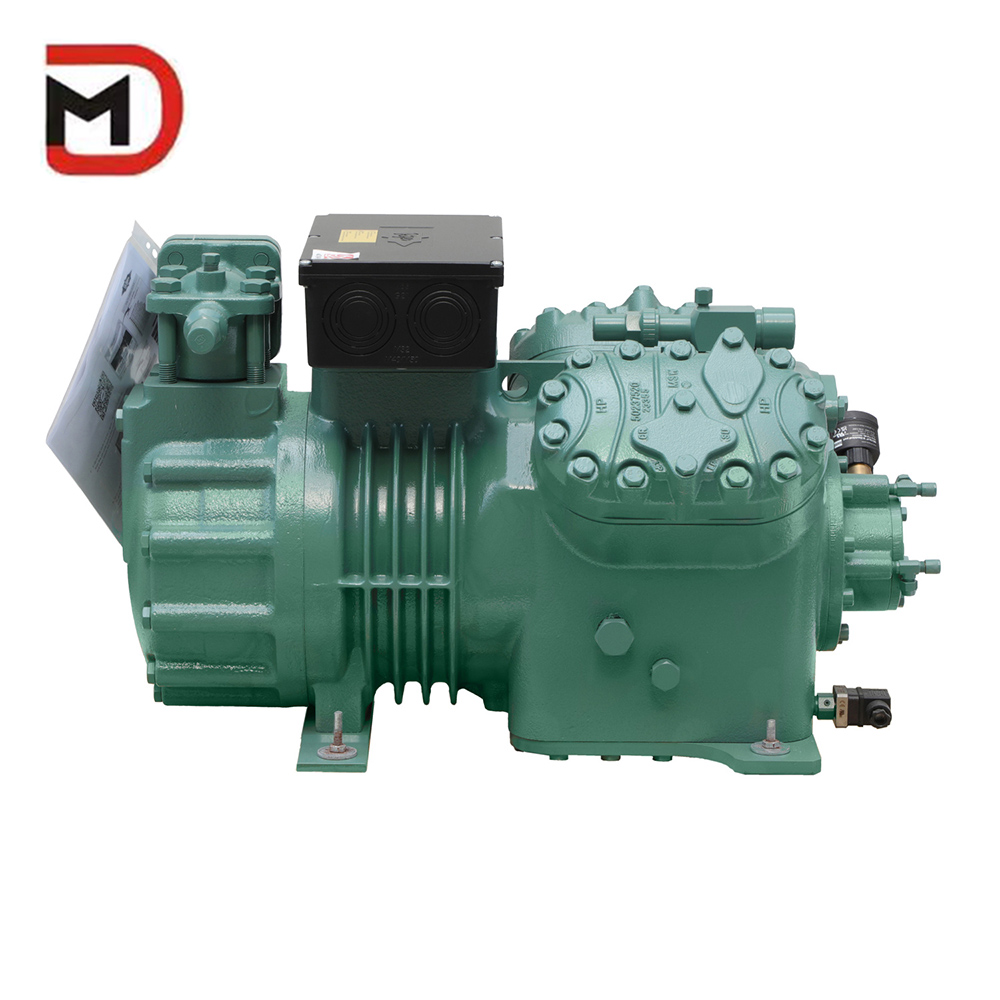

Product Description:
A piston compressor is a mechanical device that relies on the
reciprocating motion of a piston to pressurize and transport gas.
It is a positive displacement compressor, also known as a
"reciprocating piston compressor" or "reciprocating compressor".
Its working principle is based on the reciprocating motion of the
piston in the cylinder. When the piston moves toward one end of the
cylinder, the volume of the working chamber decreases and the gas
is compressed; conversely, the gas is sucked in. After many such
cycles, the gas compression ratio and temperature gradually
increase, and finally reach the predetermined pressure and
temperature before being discharged.
Features:
Wide range of compression ratios: The compression ratios of the compressors can be easily adjusted
to meet specific requirements and cater to various working
conditions.
Diverse displacement and power: The range of displacement and power options in the compressors is
extensive, ranging from compact 100W units to robust 18.5KW
industrial-grade machines, effectively serving a wide spectrum of
needs.
Low noise and durability: Specialized noise reduction technologies are incorporated in
certain models to ensure quiet operation even in challenging
environments such as high temperatures and dusty surroundings,
enhancing the overall durability of the compressors.
High energy efficiency and easy maintenance: Noteworthy examples of energy-efficient compressors include the
Ingersoll Rand TS series which features a cast iron crankcase for
prolonged service life, while products from Atlas Copco are
designed with direct drive technology to minimize energy
consumption, making maintenance hassle-free.
Technical Parameters:
| Model | Rated Horsepower | Cooling Capacity | Input Power | Displacement | | 2KES-05Y | 0,5 | 1200 | 0,72 | 4,06 | | 2JES-07Y | 0,7 | 1680 | 0,98 | 5,21 | | 2HES-1Y | 1 | 2130 | 1,21 | 6,51 | | 2HES-2Y | 2 | 2190 | 1,23 | 6,51 | | 2GES-2Y | 2 | 2540 | 1,45 | 7,58 | | 2FES-2Y | 2 | 3150 | 1,79 | 9,54 | | 2FES-3Y | 3 | 3130 | 1,77 | 9,54 | | 2EES-2Y | 2 | 4070 | 2,01 | 11,4 | | 2EES-3Y | 3 | 4070 | 2,02 | 11,4 | | 2DES-2Y | 2 | 4900 | 2,46 | 13,4 | | 2DES-3Y | 3 | 4900 | 2,42 | 13,4 |
|
Applications:
Industrial Field: In the industrial field, various equipment is utilized for
specific tasks such as laser cutting, painting, and mining
operations. Notably, equipment like the 7.5KW screw air compressor
is commonly employed.
Refrigeration and Home Appliances: When it comes to refrigeration and home appliances, fully enclosed
models are prevalent in the household refrigerator market.
Semi-enclosed models, on the other hand, are commonly used for cold
storage preservation purposes.
Medical and Firefighting: Specialized equipment geared towards medical and firefighting
applications include items like submersible respirator inflator
pumps and oxygen generator pump heads. These are essential for
ensuring the safety and effectiveness of operations in critical
situations.
Mobile and Special Scenarios: In mobile and special scenarios, technologies like Danfoss DC
compressors (12V/24V) play a crucial role. These compressors are
specifically designed for vehicle refrigeration to guarantee food
safety even in extreme working conditions.
Support and Services:
The Product Technical Support and Services for the Piston Air
Compressor include:
- Troubleshooting assistance for any operational issues.
- Repair and maintenance services to keep the compressor running
efficiently.
- Guidance on proper usage and best practices for maximizing
performance.
- Warranty support and assistance with claims or replacements, if
applicable.
